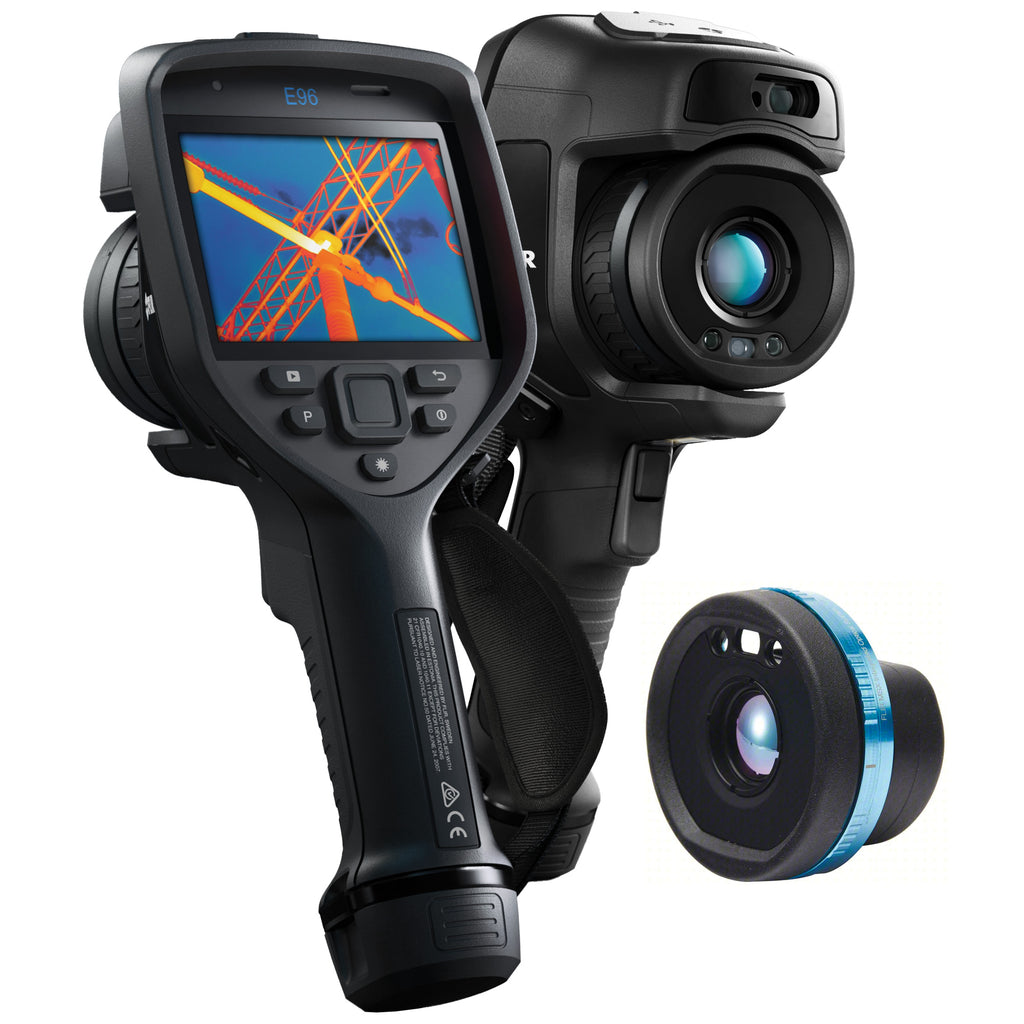

Top of The Range FLIR E96
The FLIR E96 is the best thermal imaging camera in FLIR's Exx Series. It incorporates several premium features that you won't find elsewhere, including:
- Highest Thermal Resolution - 640 x 480 true thermal detector (scalable to 1.2 megapixels with UltraMax) and a 5-megapixel digital camera.
- Wide Temperature Range - measure from -20°C up to 1500°C.
- Thermal Video - stream or record videos in infrared, including timelapse video.
- Touch Screen - for easier control and more measurement options.
- Better Optics - laser-assisted autofocus or complete manual focus control, plus optional changeable lenses.
Order Online From Reduction Revolution to Receive:
- A complete FLIR E96 kit with a hard case, two batteries, and an external charger.
- Local stock with a 10 Year Detector FLIR Australia Warranty included in the price.
- Pricing inclusive of GST - for our 'ex GST' price, divide the total by 1.1.
- A wide range of payment options with no surcharge. We accept Visa, Mastercard, PayPal (including Amex) and Direct Deposit or Purchase Order.
Click 'Add to Cart' and follow the prompts to place your order. A Tax Invoice will be issued immediately on order placement. Please contact us if you have any questions.
Get Maximum Image Clarity With FLIR MSX & UltraMax
FLIR's patented MSX image enhancement technology uses the 5-megapixel visual camera to enhance the thermal images.
Additionally, this FLIR E96 premium thermal imager includes 'UltraMax'. Here's how it works:
- Every time you take a photo, the FLIR E96 camera records 16 copies of the same scene with tiny variations.
- Once loaded into FLIR Thermal Studio, the software extrapolates a thermal image with four times the resolution of the original image.

Get unprecedented thermal image quality with FLIR UltraMax.
Identify Issues Before They Cause Damage
Heat is often the first sign of mechanical or electrical failure. The FLIR Exx-Series allows you to identify and fix technical problems quickly.
The FLIR E96 now offers 640 x 480 native thermal resolution and multiple interchangeable lenses. These lenses are auto-calibrated and offer fast and precise laser-assisted autofocus.
With the FLIR E96, you also get:
- Optional automated cloud image backup (FLIR Ignite) included in the price.
- GPS location data added to every still image and video.
- Voice annotations, text, or sketch directly onto infrared images via the vibrant touchscreen.

Find Hidden Problems, Fast
Inadequate insulation, moisture intrusion, building defects - you can see it all with thermal imaging. The FLIR E96 helps you identify the root cause of issues and prevent or minimise expensive repairs.
The FLIR E96's incredible thermal sensitivity allows you to catch the first signs of air leaks, moisture, building envelope problems, and much more.
Other important features for building inspectors include:
- An optional wide-angle 42° lens to survey larger areas with ease.
- Laser distance measurement - including automated area measurement with the FLIR E96.
- Programmable shortcuts, like a one-button switch between the thermal image and MSX image.
Specifications - FLIR E96
| Temperature Range | -20°C to 1,500°C |
| Thermal Resolution | 640 × 480 (307,200 measurement pixels) |
| UltraMax Resolution | 1.2 megapixels |
| Digital Camera | 5 megapixels with LED light |
| Thermal Sensitivity | <0.03°C |
| Field of View | 24° × 18° with the standard lens (optional: 14° Telephoto, 42° Wide Angle, 2x Macro) |
| Lens Type | User interchangeable, autocalibrating - add an extra lens |
| Display | 4-inch Dragontrail (scratch-resistant) touchscreen |
| Laser | Laser pointer plus Laser Distance Meter (LDM) and area measurement |
| Digital Zoom | 1-8x |
| File Storage | Radiometric JPEG images & MPEG4 videos are stored on an 8GB SD Card (included) |
| File Transfer & Connectivity | Wi-Fi, Bluetooth, Meterlink, USB, & DisplayPort |
| Battery | Lithium-ion battery with over 2.5 hours operating time (2 batteries included). Rechargeable in-camera or via an external charger (included). |
| Weight | 1 kg |
| Mounting | Handheld pistol grip or tripod mount below the lens |
| Ratings | IP54 ingress protection; 3-metre drop test |
| Product Identifiers | FLIR E96 640x480 30Hz 24° Lens (name), 90202-0101 (part number), 845188022266 (barcode) |
| Further Info | FLIR Exx Series Data Sheet (PDF) |
| Warranty | 10 Year Detector, 5 Year Battery, 2 Years Parts & Labour |
What's included in the FLIR E96 box?
- High-quality hard transport case (for camera and accessories)
- FLIR E96 infrared camera with 24°, 14°, 42° or Dual FOV lens (use the option selector to choose).
- Two batteries
- Battery charger with power supply & plugs (Australian & International)
- Front lens and light protection
- Hand and wrist straps
- Lens caps and cleaning cloth
- Printed documentation including calibration certificate
- 8GB SD storage card
- Cables (USB 2.0A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
Do I need special software to download and view the images?
You can download images from the FLIR E96 thermal camera just like you would on a standard digital camera (no special software required). However, to unlock the full reporting and image editing potential of this powerful thermal imager, there are two main software options available:
- FLIR Ignite (Free / included in price) - an automated way to back-up and transfer your thermal images straight to the cloud. FLIR Ignite is accessible on your phone, tablet or laptop and allows for easy image organisation and sharing. It can also sync with FLIR Thermal Studio.
- FLIR Thermal Studio (Free or paid versions available) - for in-depth desktop analysis and report creation.
What is a 'Dual FOV' lens?
A Dual FOV (Field of View) lens lets you switch between two viewing angles using a single lens mechanism. With a Dual FOV lens you do not need to physically swap lenses to change the field of view.
What other models are available?
Explore our complete range of FLIR Exx Series thermal cameras and accessories.
