Easy-Access Power Meter
Our Power Meter with a Separate Screen helps you find hidden energy guzzlers and reduce your electricity bills.

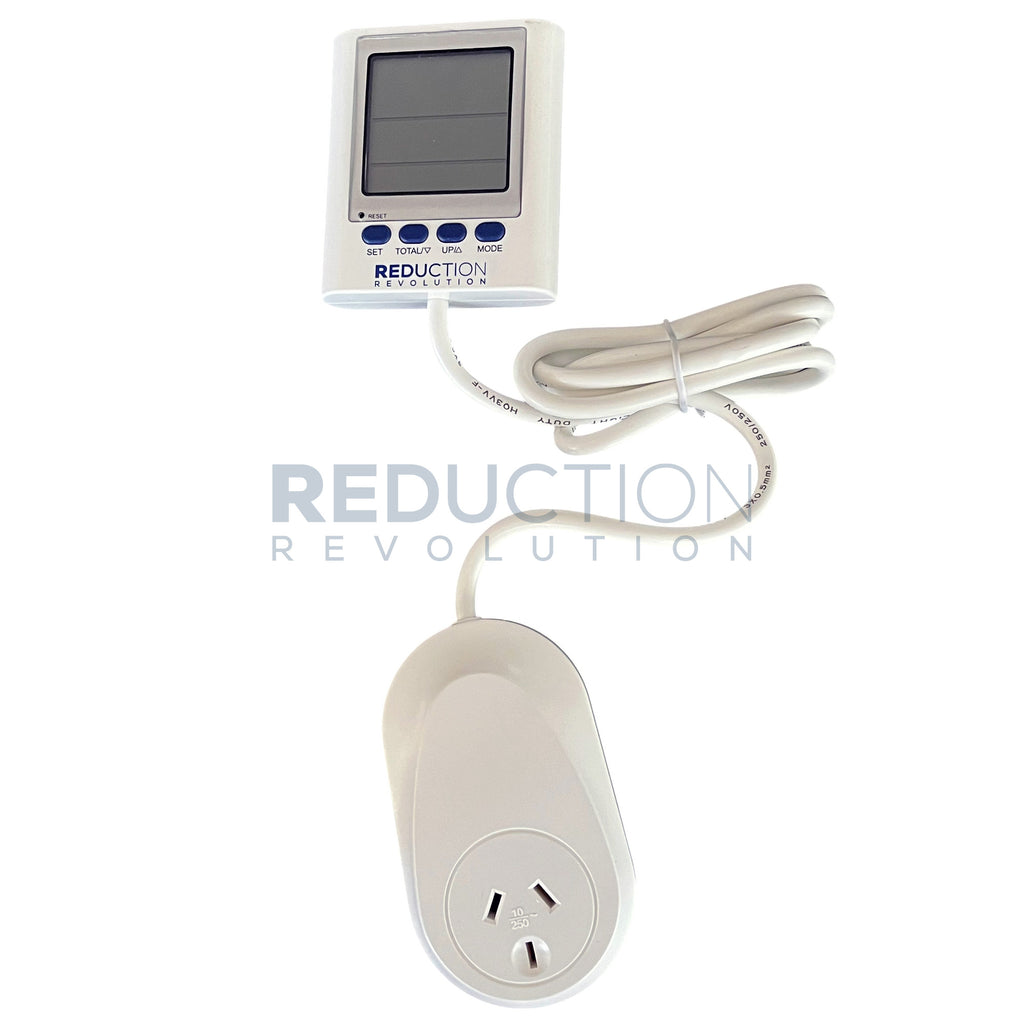

Unlike other power meters, it has a separate LCD screen on a 1.2‑metre cord, so you can easily read it even when the outlet is hidden or close to the ground.
It measures the following:
- Watts (W) - Real-time power usage.
- Kilowatt-hours (kWh) - Total energy usage over time.
- Cost ($) - Calculated based on your electricity tariffs.
- Volts, Amps, & More - Including estimated CO₂ emissions.
Measure Any Plug-in Appliance
The power meter measures any standard plug-in appliance's energy usage and operating cost, including:
- Kitchen: Fridges, freezers, kettles, dishwashers, coffee machines, microwaves, air fryers, etc.
- Bathroom & Laundry: Washing machines, dryers, irons, hair dryers.
- Heating & Cooling: Plug-in heaters, electric blankets, portable air conditioners, portable fans, etc.
- Garage & Outdoors: Plug-in EV chargers, power tools, battery chargers, pool equipment, water pumps, and more.
- Entertainment & Office: TVs, sound systems, computers, printers, and phone chargers.
It can even measure several devices at once when connected through a power board, like your home office set-up.
How to Use Our Power Meter

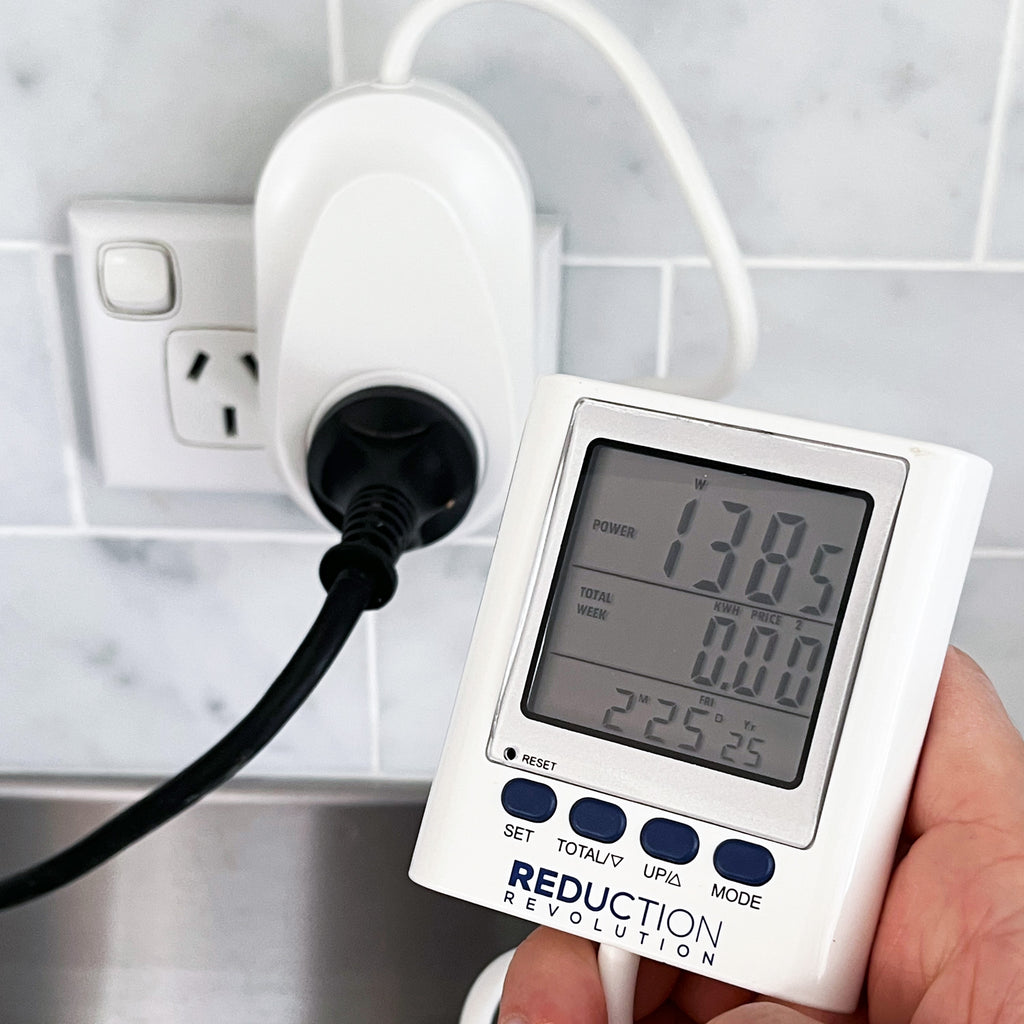

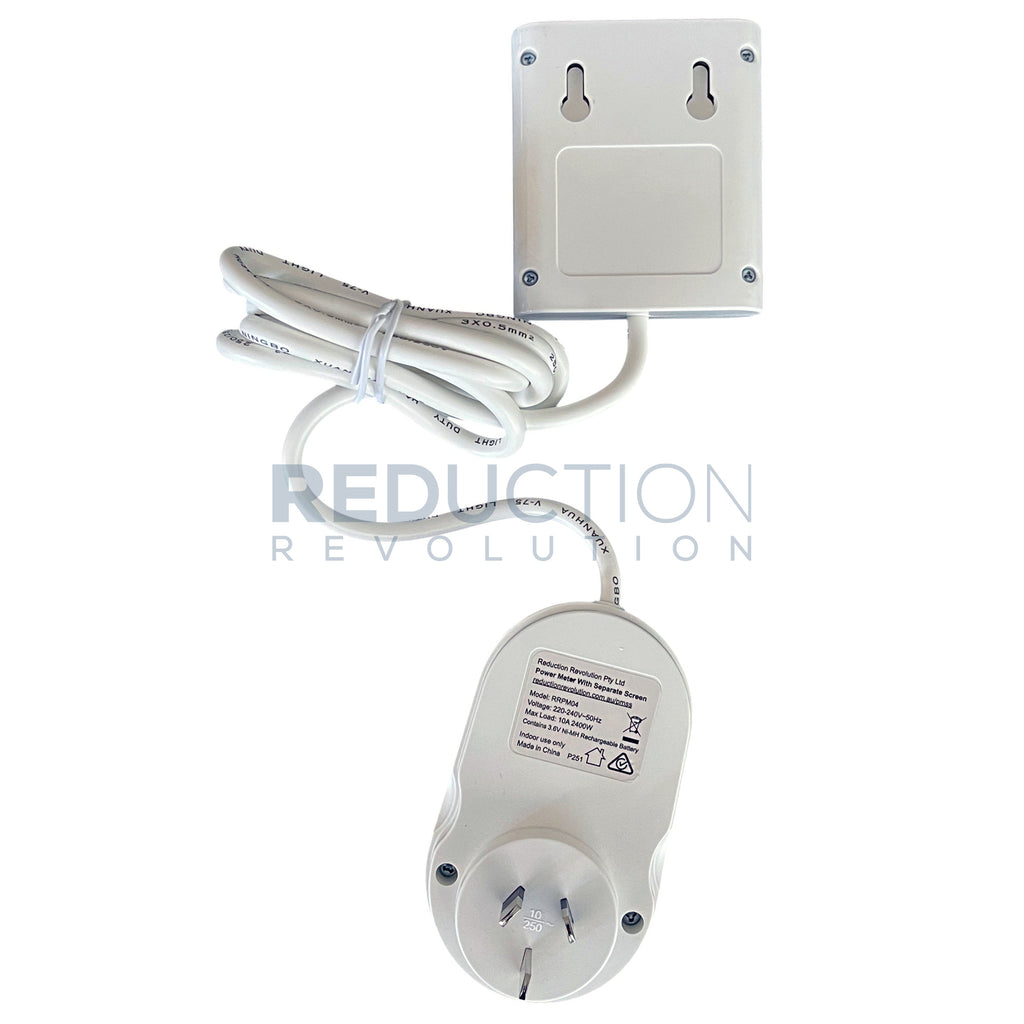

The Reduction Revolution Power Meter is super easy to use. Plug the meter into a power outlet, position the screen for easy viewing, and you're ready to start measuring. The display even includes two hook recesses on the back for hanging on a nail or screw.
The power meter's display screen has three main sections:
- The top section displays real-time usage in Watts, Volts, Amps, Cost, and KgCO₂.
- The middle section shows cumulative or total cost, kWh, and KgCO₂ since the last reset. It displays this data for the previous week, month, and year.
- The bottom section displays the current time and day of the week.
Printed instructions are included with the meter.
Specifications - Power Meter With Screen
| Plug Type | Standard 10A Australia / New Zealand 3-pin power plug & socket |
| Power Use | 0.2 W |
| Measurement Range | 0 - 2,400 W |
| Accuracy | ±1.5% |
| Tariffs | Input up to two electricity tariffs for accurate cost calculations |
| Key Parameters | Kilowatt-hours (kWh): 0.001 to 9999 kWh Cost: $00.00 to $9999 Watts (W) & Voltage (V): to one decimal place Amps (A): 0.005 to 10A Clock Display: time and date |
| Battery Backup | Built-in rechargeable Ni-Mh 3.6V battery for retaining measurements when you unplug it |
| Dimensions | Screen: 80mm x 70mm x 20mm Power Plug: 107mm x 62mm x 40mm (excluding pins) (height x width x depth) |
| Cable Length | 1.2 metres |
| Weight | 220 grams |
| Product Identifiers | Reduction Revolution Power Meter With Separate Screen (RRPM04) |
| Further Details | User Manual (PDF) |
| Warranty | 2 Years |
Power Consumption Meter Support & FAQ
How accurate are the measurements?
This power meter provides highly accurate readings that are comparable to our higher-end power meters.
How do I reset the readings?
To reset the accumulated data, press and hold the 'TOTAL' and 'UP' buttons simultaneously for two seconds. To clear all settings and restart the device, press the 'RESET' button on the front of the unit with a pointed tip item like a pen or toothpick.
What is the minimum power consumption that this meter can detect?
The Reduction Revolution Power Meter With Separate Screen can detect power consumption as low as 0.2 watts, making it suitable for even small power supplies. For more sensitive measurements, consider the Power Mate Lite, which can track power down to 0.01 watts.
Does the Power Meter measure Real Power?
This power meter measures 'Real Power' - the energy consumption you are billed for. It provides accurate and instantaneous power measurements in Watts (W) and kilowatt-hours (kWh) over time. Unlike other low-end power meters, this power meter ensures accurate readings and always displays real power.
What other power monitoring devices do you sell?
We previously sold the Powertech Mains Power Meter with extendable LCD Display (MS6108), which is similar to this power meter. We also offer a variety of other power monitoring products to cater to specific needs:
- Our basic Power Usage Meter is our entry-level plug-in power meter. It has no lead and tracks fewer metrics.
- The Power Mate Lite is a professional tool with a backlight and more detailed readings.
- The Power Mate 15A meter is for larger 15A power sockets used by caravans, electric vehicles, commercial kitchens, boat marinas, and more.
- Hard-wired electrical sub-meters are the perfect solution for on-billing sub-tenants.
- Wireless energy monitors provide energy usage data for your entire property.
