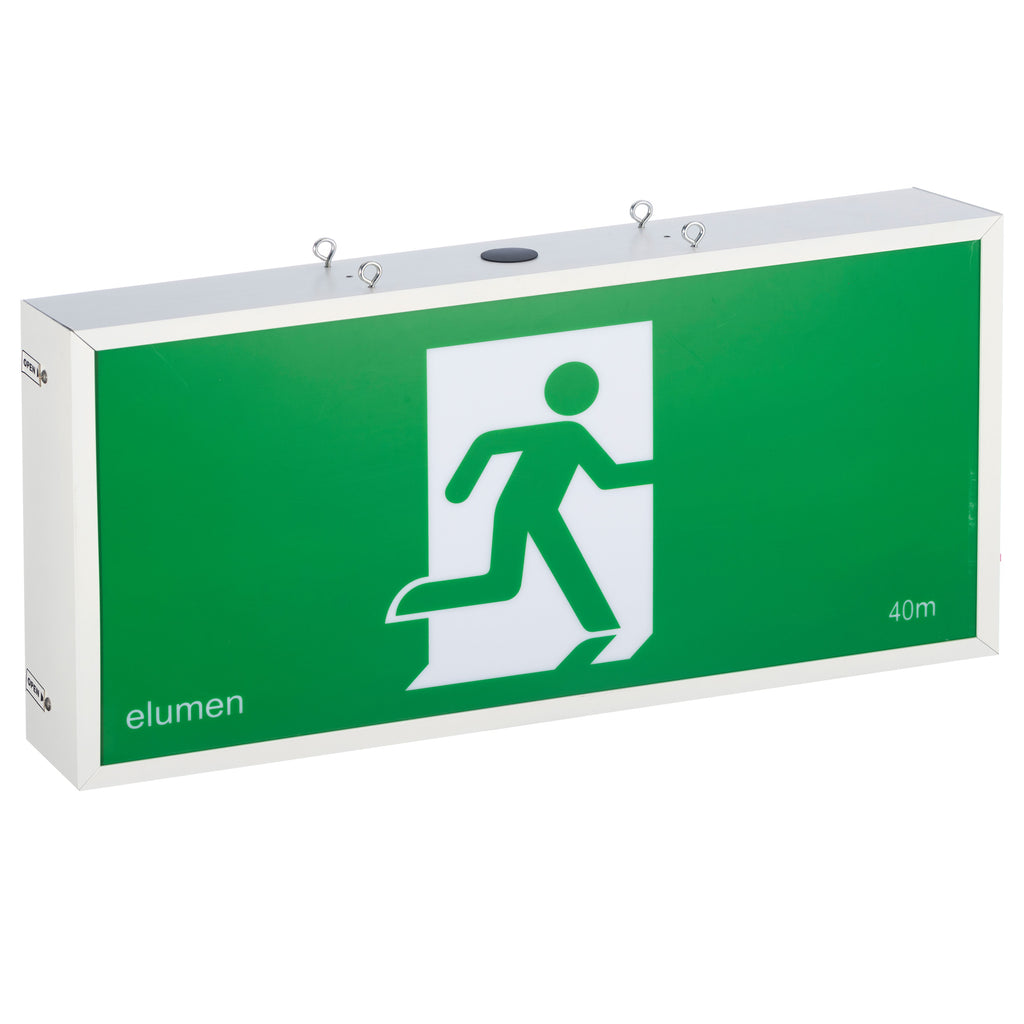

Jumbo Exit Light for Large Spaces
The Elumen Mile is a 'jumbo' exit light for applications requiring up to 40-metre viewing distances. Large exit lights are often required in warehouses, sports facilities, shopping centres, and other expansive indoor environments. Its durable steel construction and versatile mounting options make installation straightforward for any large venue.
- Choose the Standard or Self-Test model.
- 40-metre viewing distance - 60% further than standard exit lights.

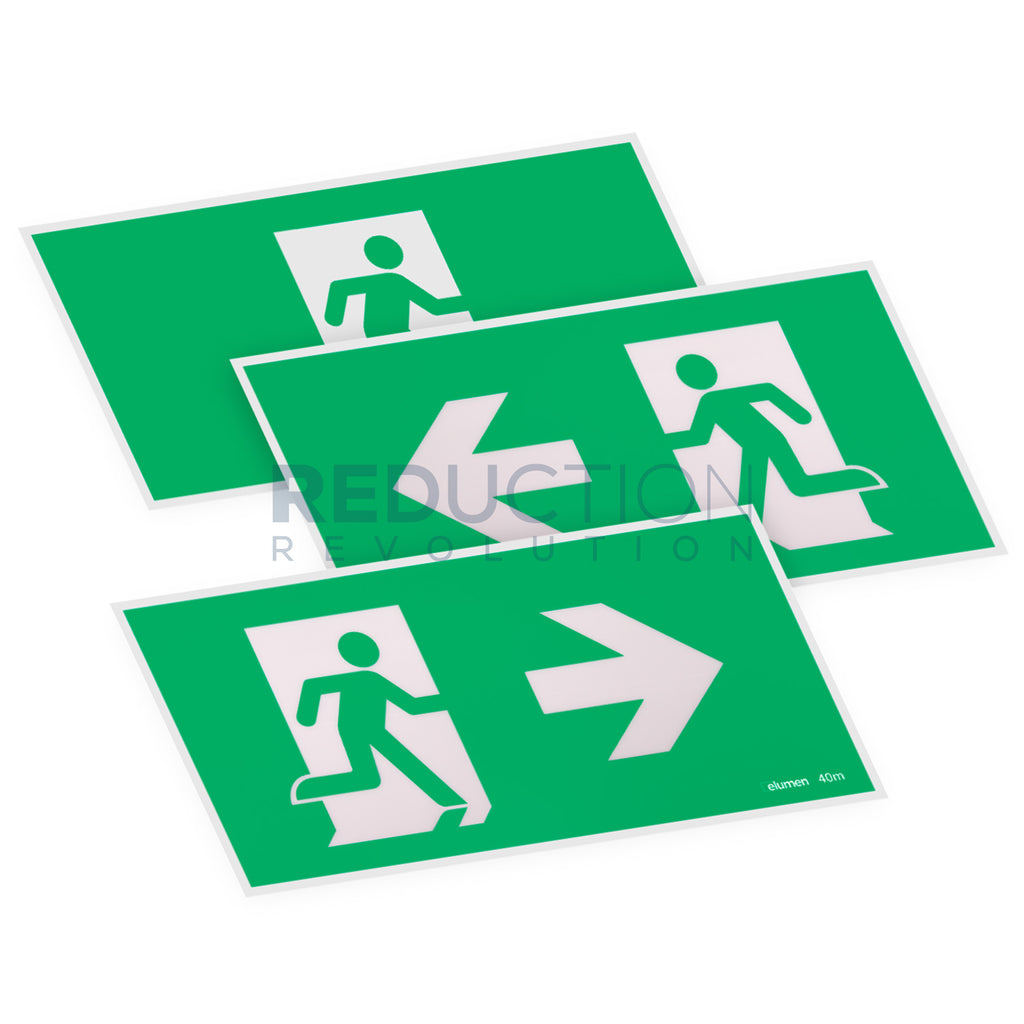

- All 'running man' decals included (single sided installation).
- Safe and dependable lithium iron phosphate (LiFePO4) battery.
- Up to a 5 Year Warranty that includes the battery.
- Multiple mounting options: wall, ceiling, or suspended with chain/rod.
Save More With a Self-Testing Jumbo Exit
The Elumen Mile Exit Light comes in two main options:
- The Standard model offers the most economical upgrade choice for large-space installations. It includes a 3-year warranty.
- The Self-Test large exit light offers substantial additional time savings and an extended 5-year warranty.
Here are the additional features of the Self-Test model:
- Automated test schedule. The jumbo exit light will test itself every 60 days and record the results. You can adjust the test schedule and timing in the app.
- No test switch required. Ideal for new installations to save on wiring costs.

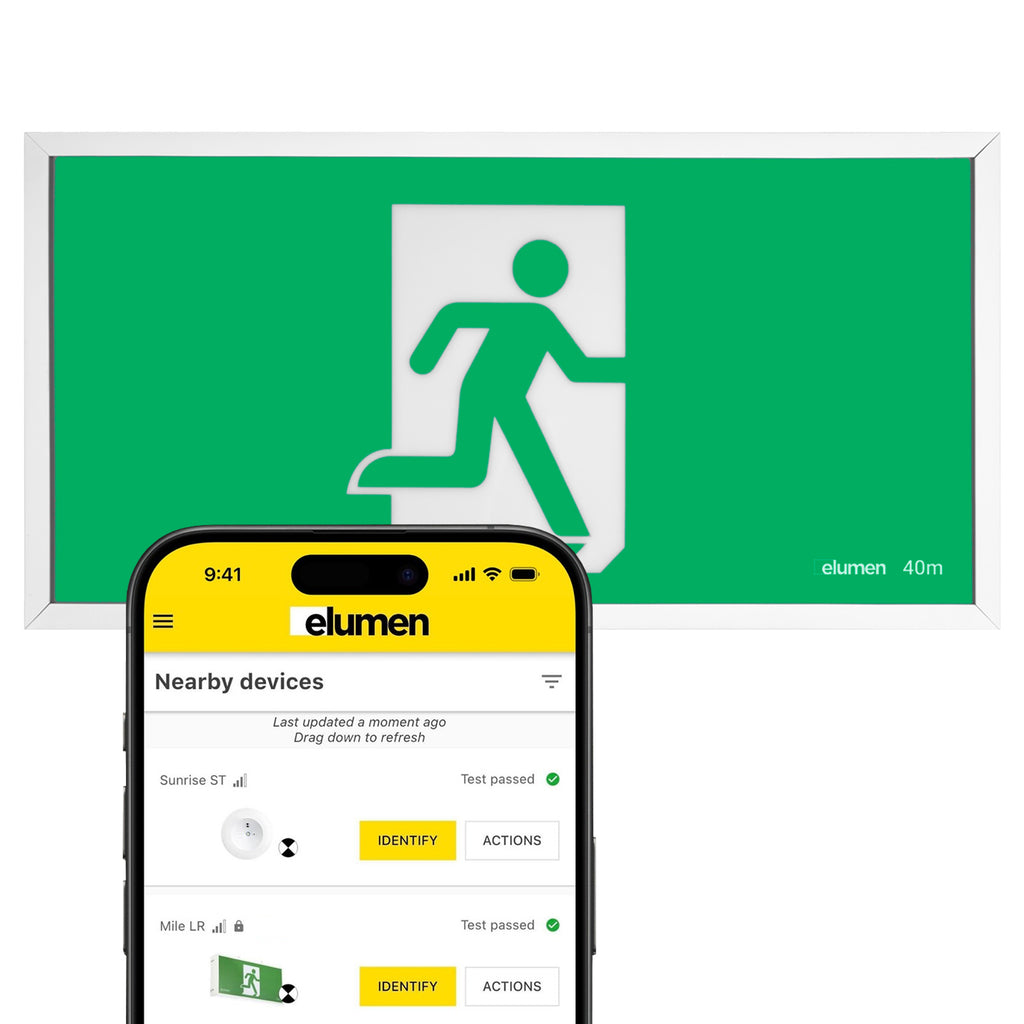

- Easy set-up and data collection. Each 40m exit sign connects to the Elumen app via bluetooth. Simply walk past each light to gather results. The app includes a floor-plan integration and exportable Annual Fire Safety Statement (AFSS) reports.
Choose the Self-Test model for streamlined testing and reporting.
Australian-Designed Jumbo Exit Lights
The Mile's up to 48-metre viewing distance is achieved through a larger pictograph that remains clearly visible even in open areas. According to AS/NZS 2293 standards, the minimum pictorial element height for viewing distances greater than 32 metres must be calculated based on the maximum viewing distance divided by 160. The Mile's design exceeds these requirements for standard 32m or 40m installs, making it compliant for spaces requiring extended visibility.
Specifications – Elumen Mile Jumbo Exit Sign
| Product Type | Maintained emergency jumbo (40m) exit light, single-sided |
| Voltage | 220–240V AC |
| Power Use | 6W maximum |
| Light Source | LED with 100,000-hour lifetime |
| Viewing Distance | Up to 48 metres - ideal for large venues |
| Battery Type | Lithium iron phosphate (LiFePO4) |
| Rated Duration | Greater than 2 hours emergency operation |
| IP Rating | IP20 Indoors - see our weatherproof exit for outdoor applications |
| Material | White powder-coated steel body with acrylic decals |
| Weight | 4.7 kg |
| Dimensions | 616mm (width) x 308mm (height) x 95mm (depth) |
| Installation & Mounting Options | Wall mount, ceiling mount, or suspended with chain/rod. Installation by a licensed electrician required. Large terminal block for easy wiring. |
| Product Identifiers | Elumen Mile LED Jumbo Emergency Exit Sign; MILE-40-EM Standard, MILE-40-ST Self-Test, MILE-40-LR Networked. |
| Warranty | 3 Years (Standard), 5 Years (Self-Test & Networked) |

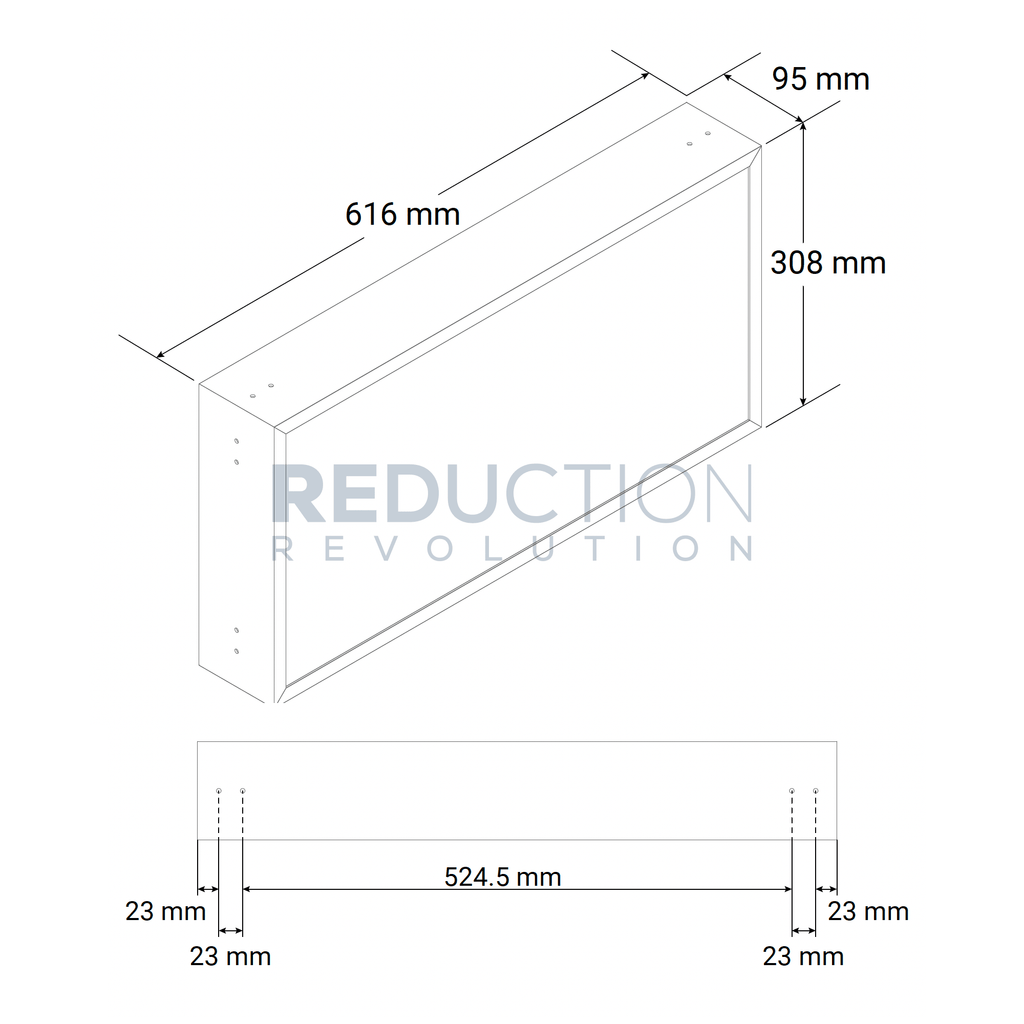

Elumen Mile Jumbo Exit Light Dimensions.
Frequently Asked Questions
What is the difference between a standard exit light and a jumbo exit light?
Standard exit lights like the Elumen Manly provide a 24-metre viewing distance, suitable for offices, retail stores, and smaller commercial spaces. Jumbo exit lights like the Mile extend visibility to 40 metres, making them essential for warehouses, sports facilities, manufacturing plants, shopping centres, and other large venues where occupants may be further from exit points.
Can I install the Mile in double-sided configuration?
By default the Mile is set-up for single-sided installation (such as above fire exit doors). An upgrade kit is available to make in double-sided.
How do I determine if I need a jumbo exit light?
AS/NZS 2293 standards specify minimum pictorial element heights based on maximum viewing distance. For viewing distances up to 24m, a 150mm tall pictograph is sufficient. For distances from 24m to 32m, a 200mm element is required. Beyond 32m, you need a 250mm pictograph or larger. Measure the furthest distance an occupant would need to see the exit sign in your space. If that distance exceeds 24 metres, and is up to 48 metres, the Mile is your best solution.
Can the Mile be suspended from the ceiling?
Yes. The Mile includes four screw mounting hooks specifically for ceiling suspension via chain or rod. This mounting method is popular in warehouses and large retail spaces where ceiling heights are significant and wall mounting isn't practical.
Is a remote-access 'networked' option available?
Yes. The networked MILE-40-LR variant features Elumen's Plexus mesh network for remote cloud monitoring and is available for large-scale deployments. If you're interested in networked jumbo exit lighting with 24/7 cloud monitoring, remote testing, and management across multiple sites or large facilities, please contact us.
