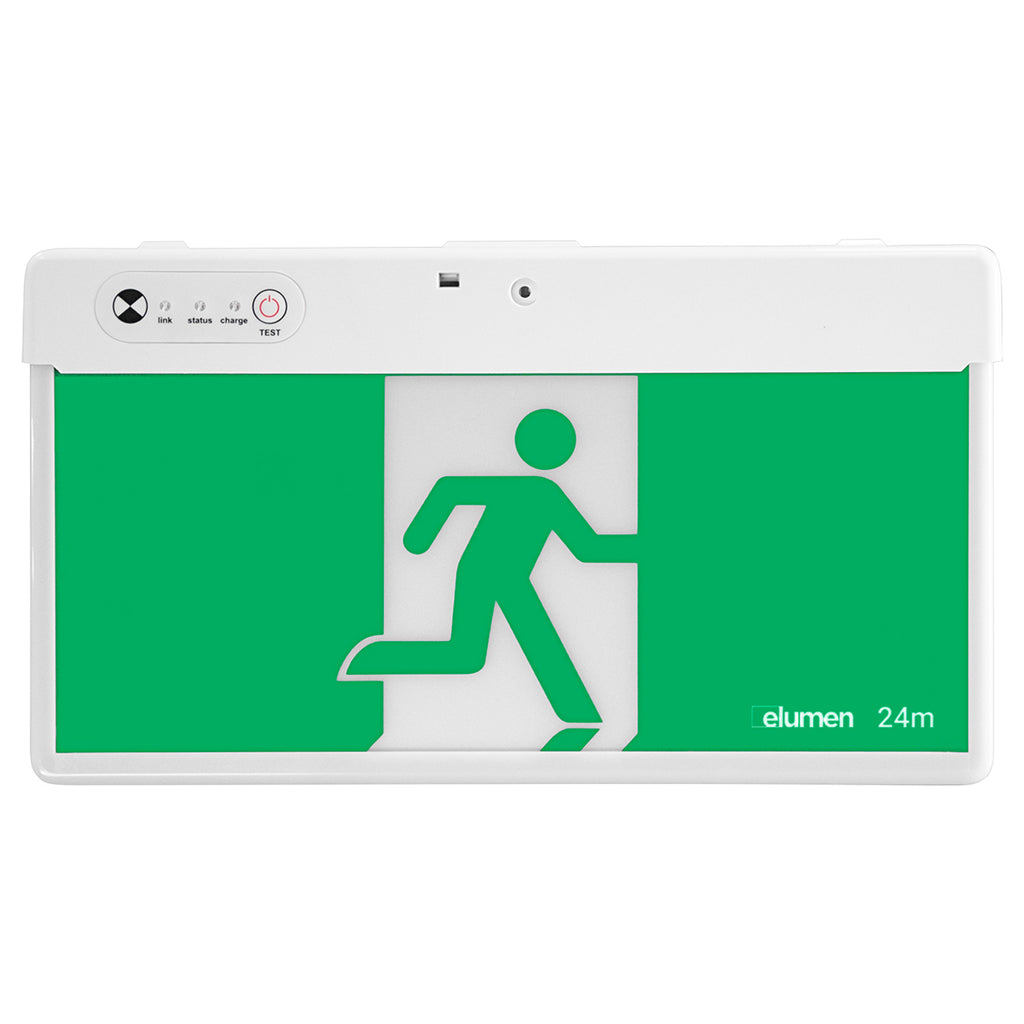

Quality Exit Light That Installs in Minutes
The Elumen Manly is a time and energy-saving LED emergency exit light. Once the base is mounted, the exit light slides in from the front for rapid installation and replacement. It's compatible with existing bases from leading brands, including Clevertronics Cleverfit and Spirit exit lights.
It has the following features:
- Choose the Standard or Self-Test model.
- Includes all direction 'running man' decals in the box.
- Safe and dependable lithium iron phosphate (LiFePO4) battery.
- Up to a 5 Year Warranty that includes the battery.
Save More With a Self-Testing Exit Light
The Elumen Manly Exit Light comes in two options:
- The Standard model offers the most economical upgrade choice and suits most installations. It includes a 3-year warranty.
- The Self-Test model offers substantial additional time savings and an extended 5-year warranty.
Here are the additional features of the Self-Test model:

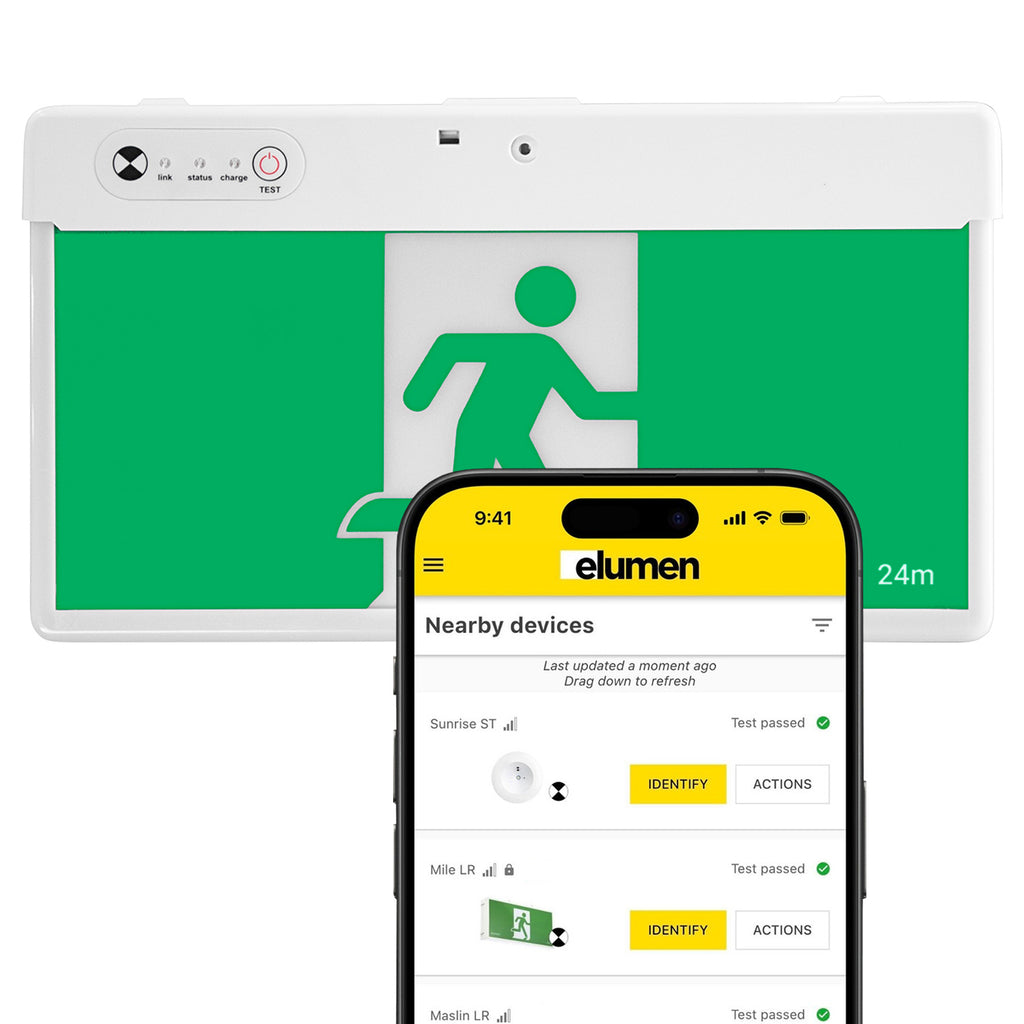

- Automated test schedule. The exit light will test itself every 60 days and record the results. You can adjust the test schedule and timing in the app.
- No test switch required. Ideal for new installations to save on wiring costs.

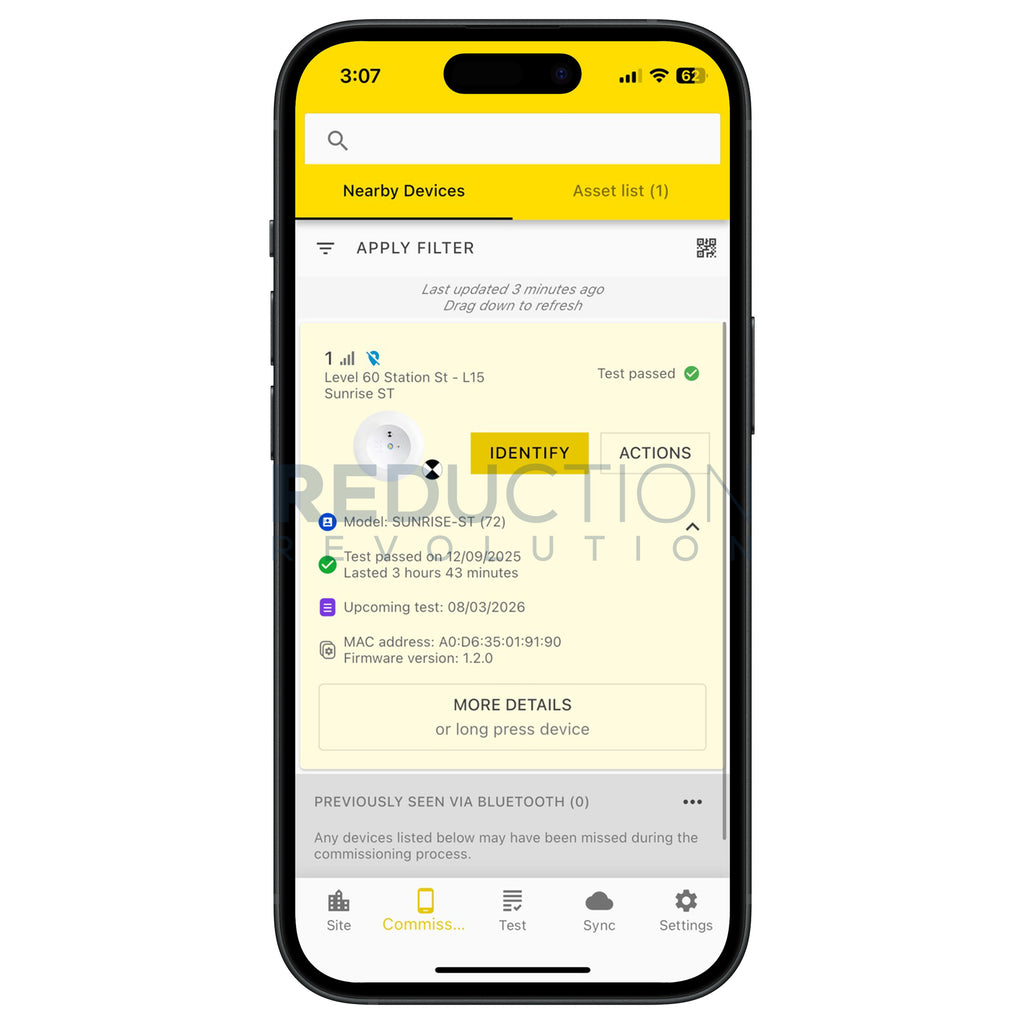

- Easy set-up and data collection. Each exit sign connects to the Elumen app via bluetooth. Simply walk past each light to gather results. The app includes a floor-plan integration and exportable Annual Fire Safety Statement (AFSS) reports.
Choose the Self-Test model for streamlined testing and reporting.
Australian-Designed Exit Lights
Since 2011, Elumen has been the trusted emergency lighting partner for some of Australia's most iconic properties, including Sydney Olympic Park.
Every Elumen product meets rigorous Australian standards (AS/NZS 2293, AS/NZS 60598, AS/NZS CISPR 15) and undergoes third-party NATA-accredited testing.
With their in-house engineering team, Elumen is leading the way with robust and energy-efficient emergency lighting.
Specifications – Elumen Manly Exit Sign
| Product Type | Maintained emergency exit light |
| Voltage | 220–240V AC |
| Power Use | 6W maximum, 3.6W standby |
| Light Source | LED with 100,000-hour lifetime |
| Viewing Distance | 24 metres - see our jumbo 40m exit |
| Battery Type | Lithium iron phosphate (LiFePO4) |
| Emergency Classification | C0 (0° viewing angle): D40 C90 (90° viewing angle): D16 |
| IP Rating | IP20 Indoors - see our weatherproof exit |
| Material | Polycarbonate |
| Weight | 1.05 kg |
| Dimensions | 352mm (width) x 86mm (depth) x 220mm (height) |
| Installation & Mounting | Installation by a licensed electrician. Retrofit-compatible with existing bases (see FAQ). Ceiling surface or wall-mountable. |
| Product Identifiers | Elumen Manly Economy LED Emergency Exit Sign; MANLY-EM Standard, MANLY-ST Self-Test, MANLY-LR Networked. |
| Further Details | Spec Sheet & Install Guide (PDF) |
| Warranty | 3 Years (Standard), 5 Years (Self-Test) |

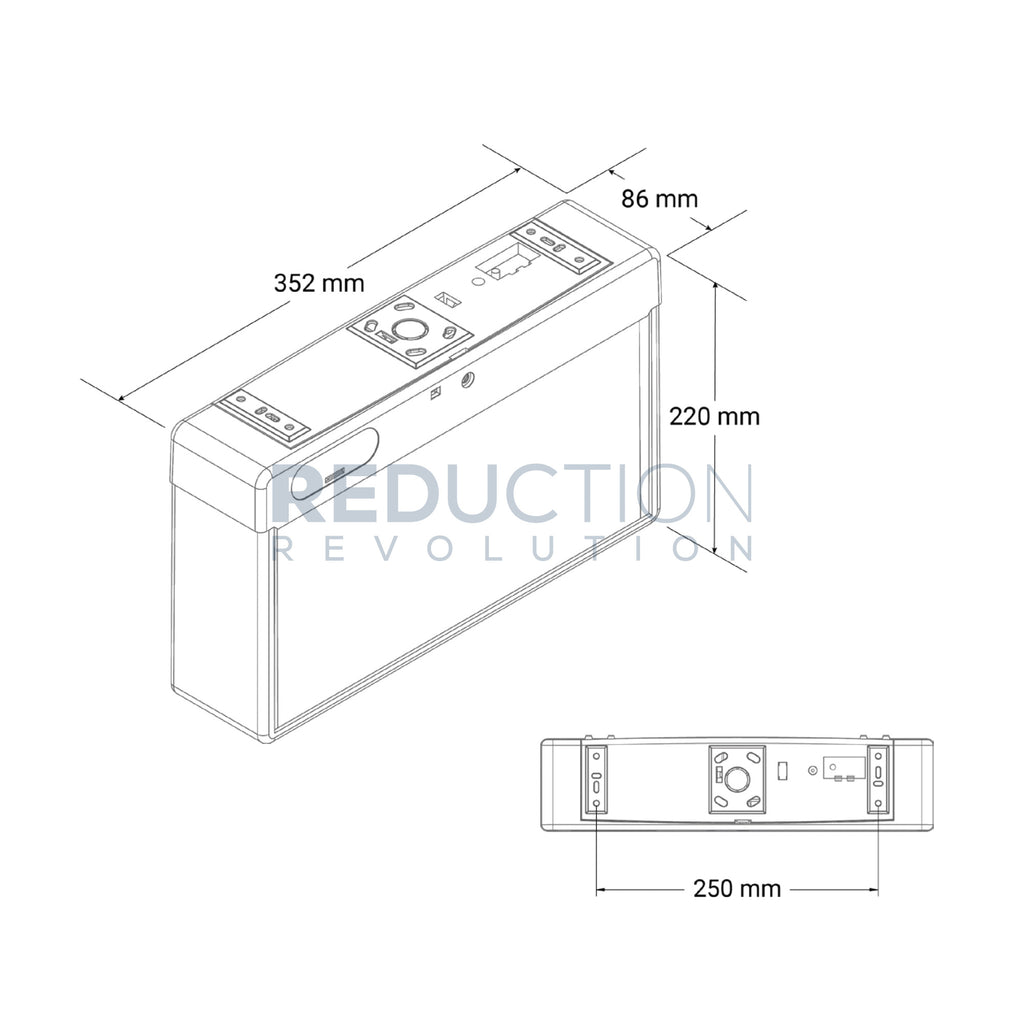

Elumen Manly Exit Sign Dimensions.
Frequently Asked Questions

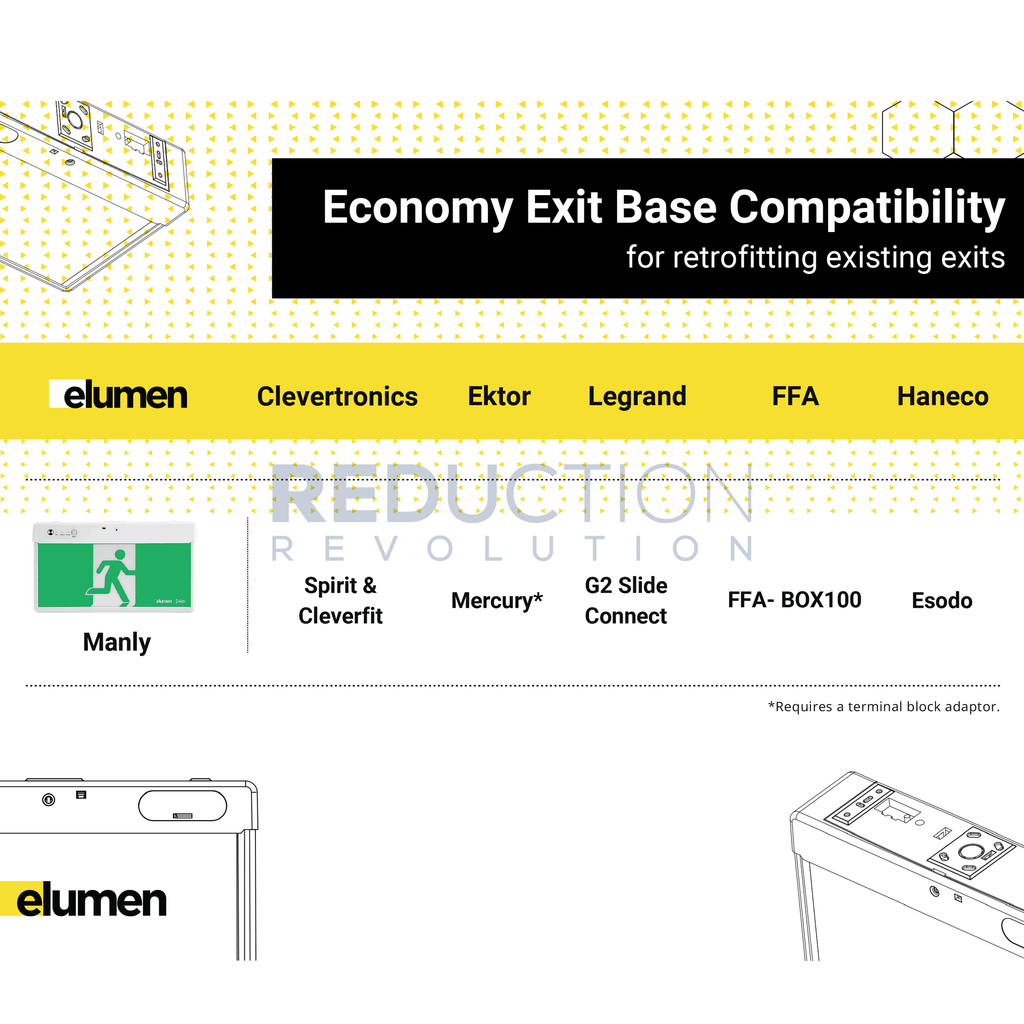

Which existing exit light bases will it plug straight into?
The Elumen Manly is compatible with the Clevertronics Cleverfit and Spirit ranges (front slide). It also works with Legrand (G2 Slide Connect), FFA (BOX100), and Haneco (Esodo).
On the self-test model are results visible without opening the app?
Yes, use of the Elumen app is optional, even with the 'self-test' version. The exit signs will still automatically test themselves every two months. The latest test result is shown via the yellow status light, as follows:
- Passed within the last 30 days: slow flashing LED.
- Failed the last test: fast flashing LED.
- Expired test result: solid yellow LED.
Passed test status indicator (self-test model).
How long does it take to charge after installation?
Once connected to mains power, allow 24 hours for the lithium battery to fully charge before conducting any testing.
What is a 90-minute discharge test?
AS/NZS 2293.3 requires emergency lights to operate in emergency mode for a minimum of 90 minutes on battery power. This ensures that if the mains power fails, the exit light will guide people safely for the required time. The Manly meets this requirement, and if you have the Self-Test variant, it logs these discharge times automatically in the app.
Is a remote-access 'networked' option available?
The networked MANLY-LR variant - featuring Elumen's Plexus mesh network for remote cloud monitoring - is available for large-scale deployments. If you're interested in networked exit lighting with 24/7 cloud monitoring, remote testing, and management across multiple sites, please contact us.
