Outdoor-Rated Weatherproof Exit Light

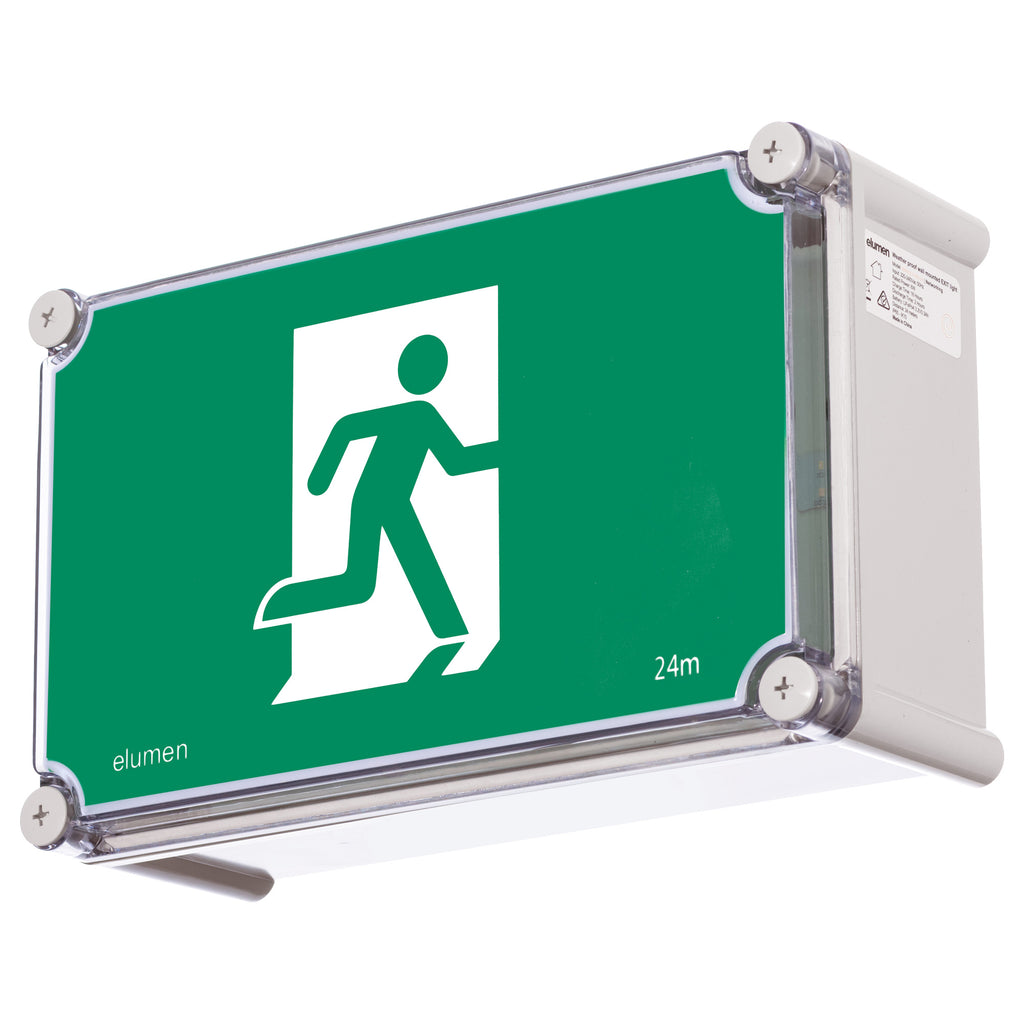

The Elumen Whale is a heavy-duty LED emergency exit light engineered for harsh conditions. Its IP65 weatherproof rating and rugged construction make it ideal for wet, damp, or exposed installations. Its perfect for carparks, loading docks, outdoor stairwells, and other exposed locations.
- Choose the Standard or Self-Test model.

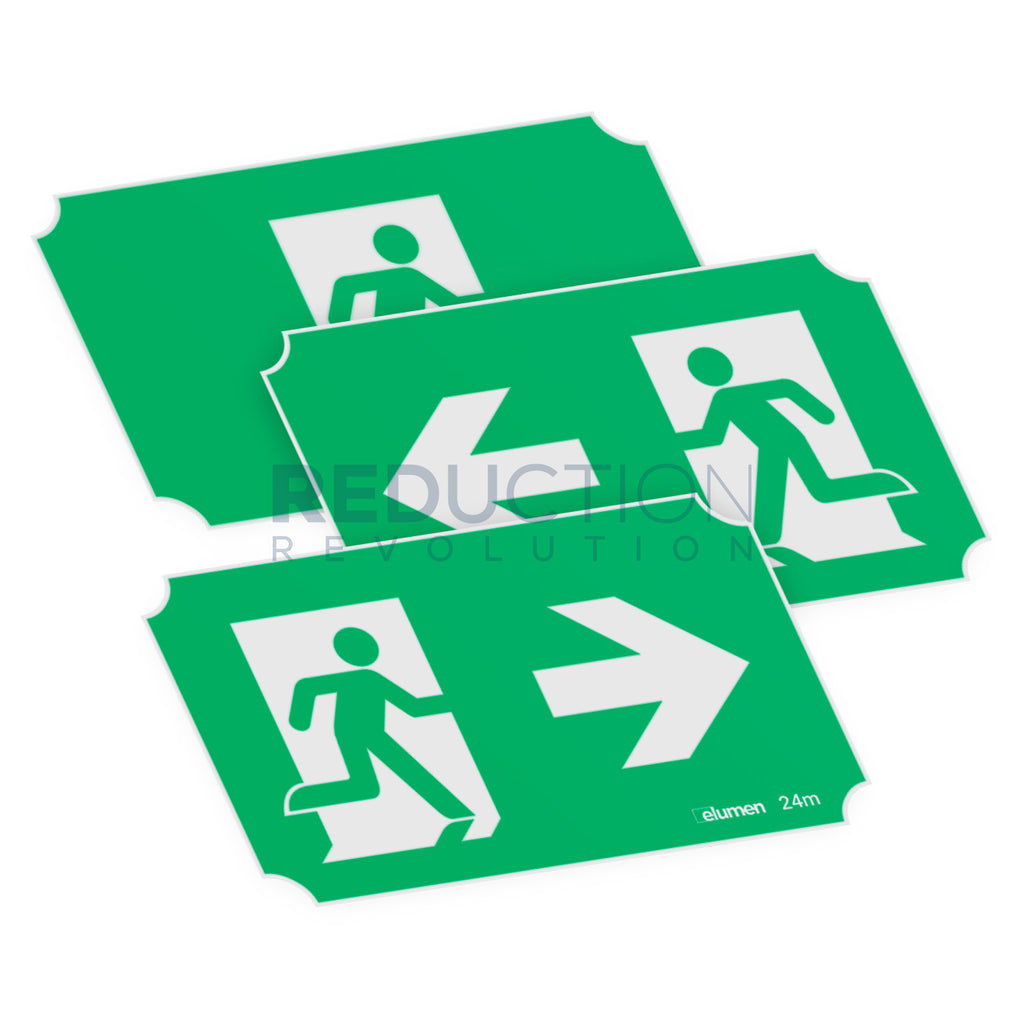

- Includes all 'running man' decals.
- IP65 weatherproof rating suitable for outdoor, wet, and damp locations.
- IK08 rating for protection against physical impacts.
- Safe and dependable lithium iron phosphate (LiFePO4) battery.
- Up to a 5 Year Warranty that includes the battery.

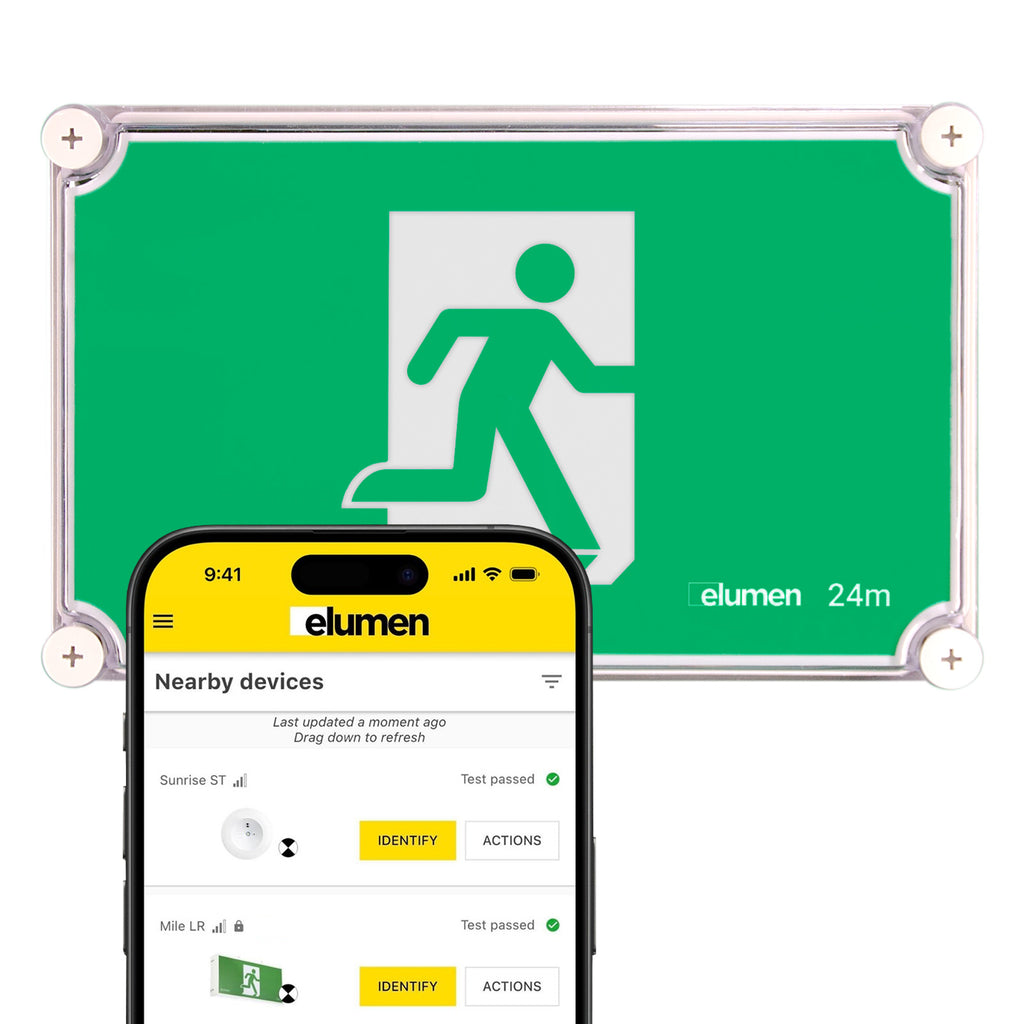

A Self-Testing Weatherproof Exit Light
The Elumen Whale Exit Light comes in two main options:
- The Standard weatherproof exit offers the most economical upgrade choice for outdoor installations. It includes a 3-year warranty.
- The Self-Test model offers substantial additional time savings and an extended 5-year warranty.
Here are the additional features of the Self-Test model:
- Automated test schedule. The weatherproof exit light will test itself periodically and record the results. You can adjust the test schedule and timing in the app.
- No test circuit required. Ideal for new installations to save on wiring costs.
- Easy set-up and data collection. Each exit sign connects to the Elumen app via bluetooth. Simply walk past each light to gather results. The app includes a floor-plan integration and exportable Annual Fire Safety Statement (AFSS) reports.
Choose the Self-Test model for streamlined testing and reporting.
Australian Weatherproof Exit Lights
Since 2011, Elumen has been the trusted emergency lighting partner for some of Australia's most iconic properties, including Sydney Olympic Park.
Every Elumen product meets rigorous Australian standards (AS/NZS 2293, AS/NZS 60598, AS/NZS CISPR 15) and undergoes third-party NATA-accredited testing.
With their in-house engineering team, Elumen is leading the way with robust and energy-efficient emergency lighting for outdoor and weatherproof applications.
Specifications – Elumen Weatherproof Exit Sign
| Product Type | Maintained weatherproof emergency exit light |
| Voltage | 220–240V AC |
| Power Use | 6W maximum |
| Light Source | LED with 100,000-hour lifetime |
| Viewing Distance | 24 metres |
| Battery Type | Lithium iron phosphate (LiFePO4) |
| Rated Duration | Greater than 2 hours emergency operation |
| Emergency Classification | C0 (0° viewing angle): C8 C90 (90° viewing angle): C8 |
| IP Rating | IP65 Weatherproof |
| Material | Polycarbonate |
| Weight | 1.9 kg |

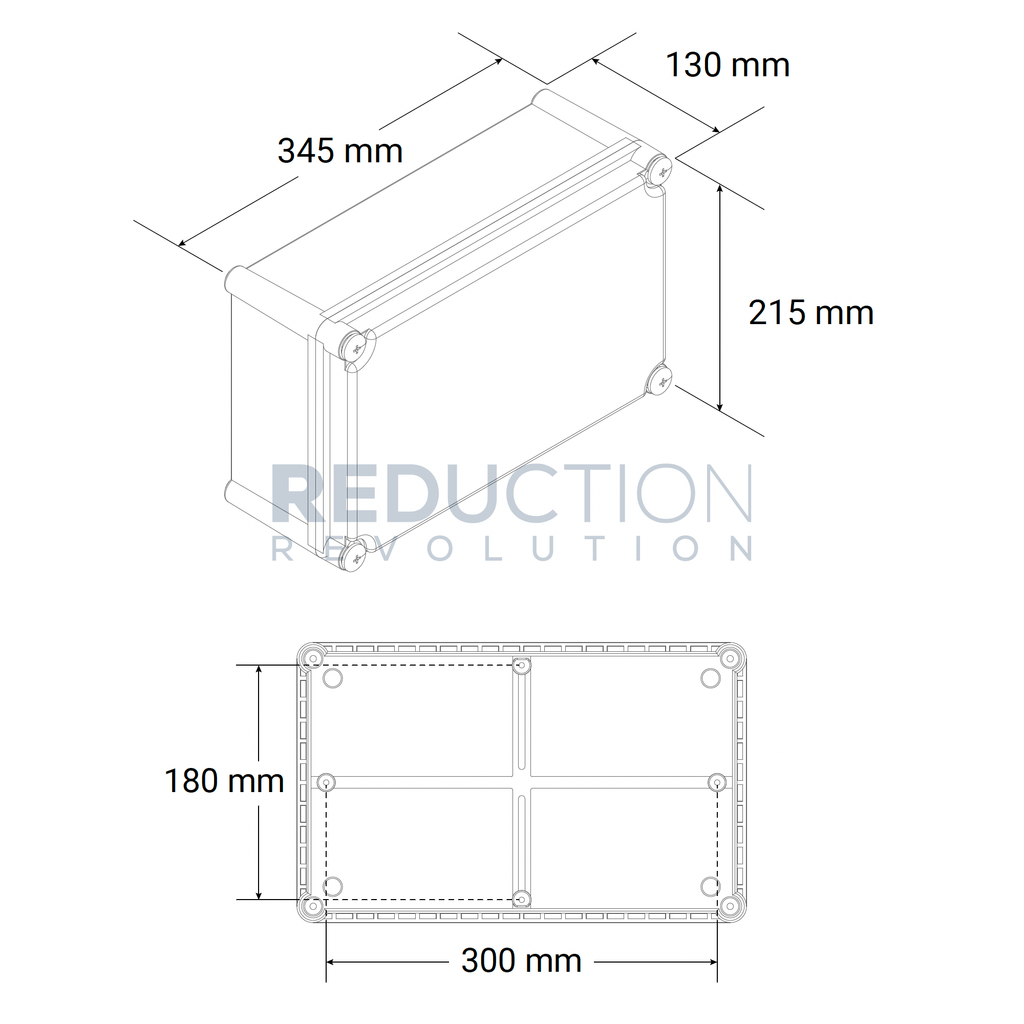

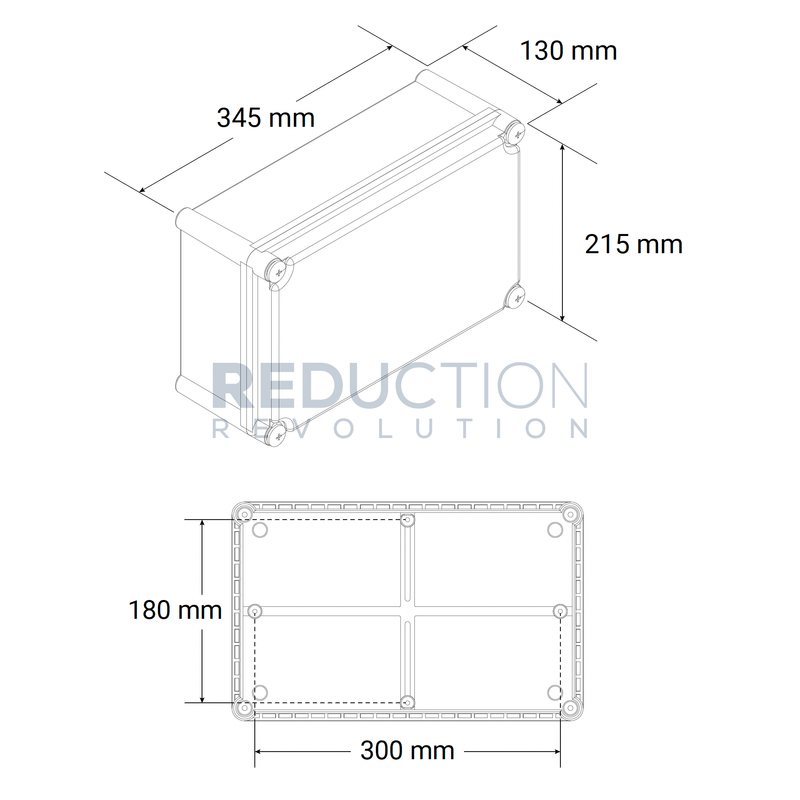

| Dimensions | 345mm (width) x 130mm (depth) x 215mm (height) |
| Mounting Type | Surface mount (on wall). Installation by a licensed electrician required. |
| Product Identifiers | Elumen Whale LED Weatherproof Emergency Exit Sign; WHALE-EM Standard, WHALE-ST Self-Test, WHALE-LR Networked. |
| Further Details | Spec Sheet & Install Guide (PDF) |
| Warranty | 3 Years (Standard), 5 Years (Self-Test) |
Frequently Asked Questions
What is an IP65 Weatherproof rating and when is it needed?
IP65 means the exit light is dust-tight and protected against water jets from any direction. This rating is essential for outdoor exit lights to ensure they continue functioning reliably through rain, humidity, and exposure. The Whale's IP65 rating ensures the internal electronics and battery remain protected in harsh weather conditions.
Can the Whale be installed indoors?
Yes, however for most well-protected indoor areas our standard Exit Signs will offer a more cost-effective solution.
Is a remote-access 'networked' option available?
Yes, the networked WHALE-LR variant features Elumen's mesh network. If you're interested in networked weatherproof exit lighting with 24/7 cloud monitoring, remote testing, and management across multiple sites, please contact us.
