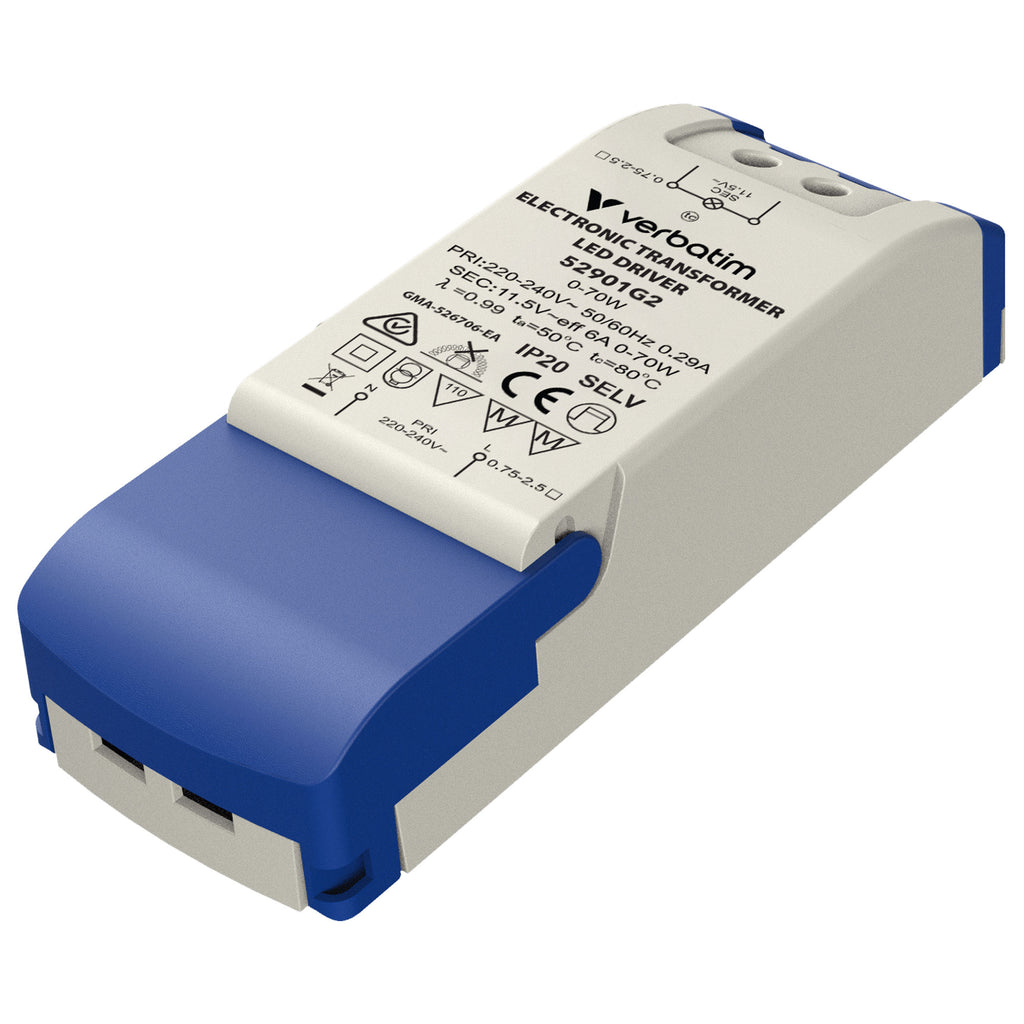

The Verbatim 70W electronic transformer is suitable for use with our MR16 and AR111 LEDs and other 12V AC LED lights. Features include:
- Dimmable - works with dimmable and non-dimmable light bulbs.
- High efficiency - 94% efficiency at full load.
- Trusted brand - 2-year Verbatim warranty.
- Compliant - compliant with all relevant safety and wiring standards.
A Better LED Transformer
This Verbatim LED transformer has the following additional benefits when compared to other options on the market:
- Higher power range - 0-70W range means you can power multiple LEDs off the one transformer (where appropriate) or use them with higher power light globes such as AR111 LEDs.

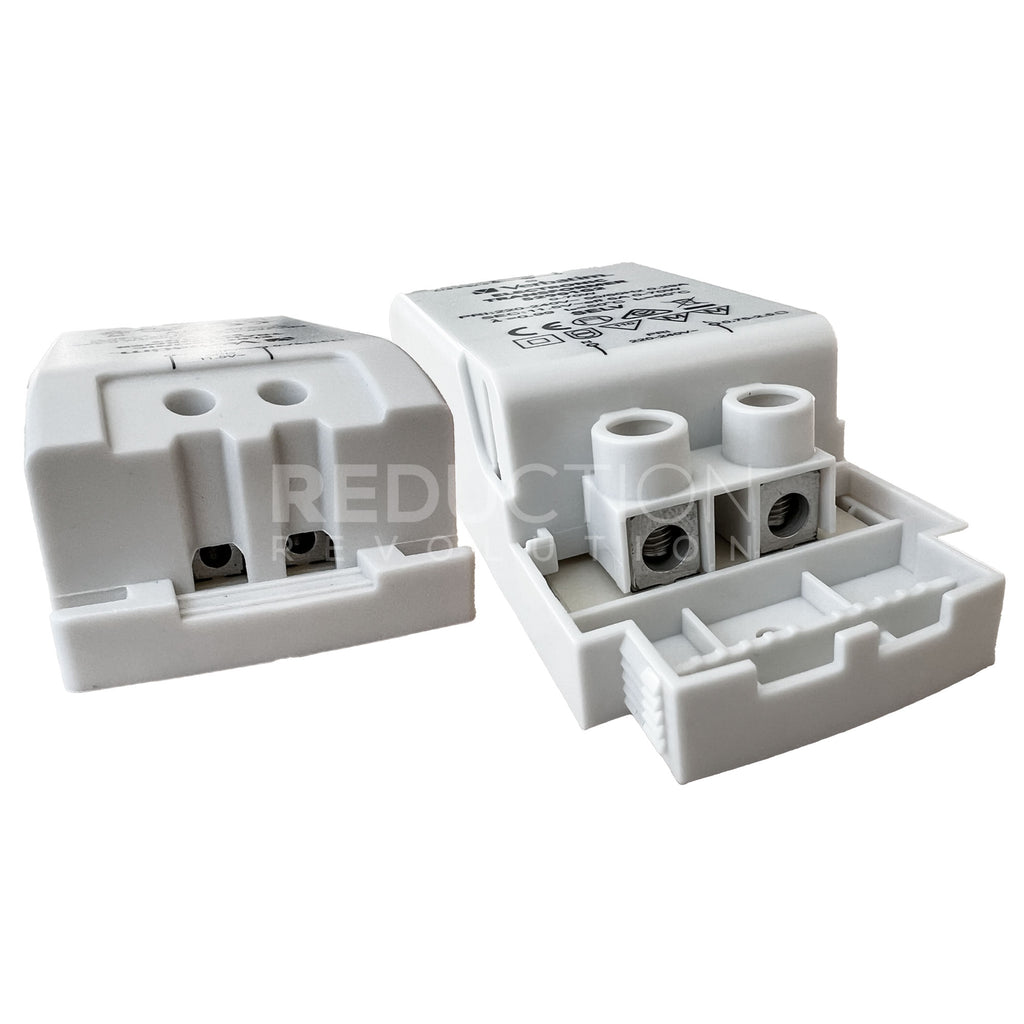

- Quick to install - large 6mm² AC mains screw-down terminals make looping easy.
- Efficient - 94% efficiency at full load.
- Broadly Compatible - works with most MR16 and AR111 LED lights.
Specifications - 12V AC LED Transformer
| Input Voltage | 220-240V AC (50/60 Hz) |
| Max Wattage | 70W |
| Max Output Voltage | 12V AC |
| Max Output Current | 6 A |
| Dimmable | Yes |
| Product Lifetime | 30,000 hours |
| Ambient Temperature | Up to 50°C |
| Max Temperature | 80˚C |
| Dimensions | 120mm x 45mm x 28 mm (length x width x height) |
| Weight | 110 grams |
| Installation | Should be installed by a licensed electrician. See also: 3 pin plug with lead. |
| Warranty | 2 years |
| Product Details | 52901G2 (order code), 4895117968055 (barcode) |
| Further Details | Datasheet (PDF) |
Frequently Asked Questions
What other options are available?
Instead of replacing the transformer, you might like to upgrade your whole light fitting with this LED downlight for 90mm cutout.
Is it always necessary to upgrade the transformer when switching to LED?
No - most of our MR16 LED bulbs do not require you to upgrade the transformer. It is only necessary to upgrade the transformer when your transformer is known not to work with LED bulbs, or where you want the added efficiency of having an LED-specific transformer installed.
Will this work on LED strip lights?
We don't recommend it. Most LED strip lights are designed to be powered with 12V or 24V DC power. This Verbatim transformer outputs 12V AC and will not drive such strip lights to full brightness. See our range of LED strip lights that come with the appropriate 12V DC power supply included.
