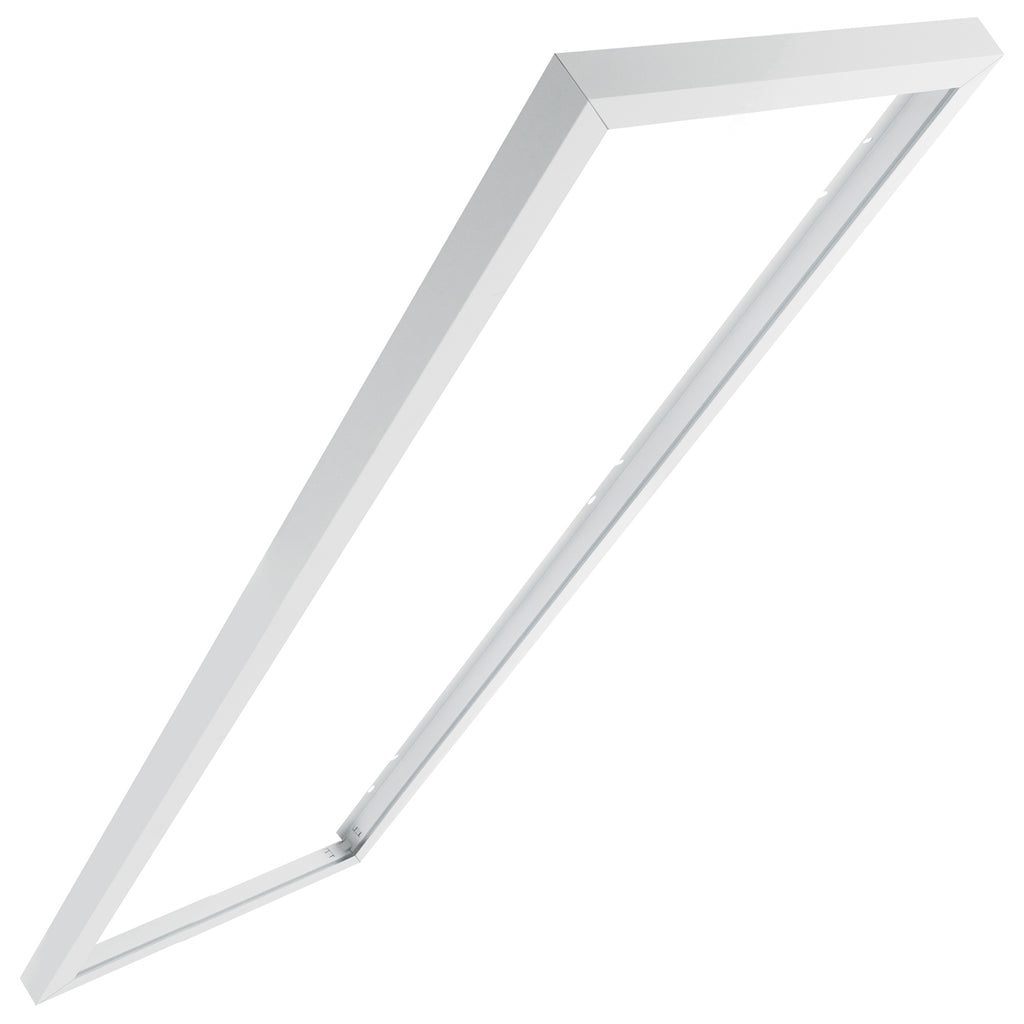

Surface Mount Frame For LED Panel Light
This surface mount kit allows for the installation of LED panel lights on ceilings where a recessed (t-bar) system is not present.
- Mount LED panels directly onto a variety of ceiling types.
- It suits our 1200 x 300mm LED panel lights and it may fit other brands (check detailed dimensions below).
- Durable aluminium, powder-coated white.
Specifications - Ledvance Surface Mount Kit 1200 x 300mm
| Material | Aluminium |
| Colour | White (powder-coated) |
| Weight | 1.1kg |
| Dimensions | External Dimensions: 1202mm x 302mm x 70mm (length x width x height) Internal Dimensions: 1198mm x 298mm x 68mm (maximum size of panel inserted). Note: due to the design of the aluminium extrusion, the very 'edge' of any panel used with the frame needs to be a maximum of 15mm thick (Ledvance and Philips LED panels are approx. 8mm at the edge). |
| Carton Quantity | 4 (this listing is for 1 unit). Light not included, see here. |
| Product Identifiers | OSRAM LEDVANCE PANEL SURFACEMKIT 0312 G2 4X1 AU; 4058075737464 |

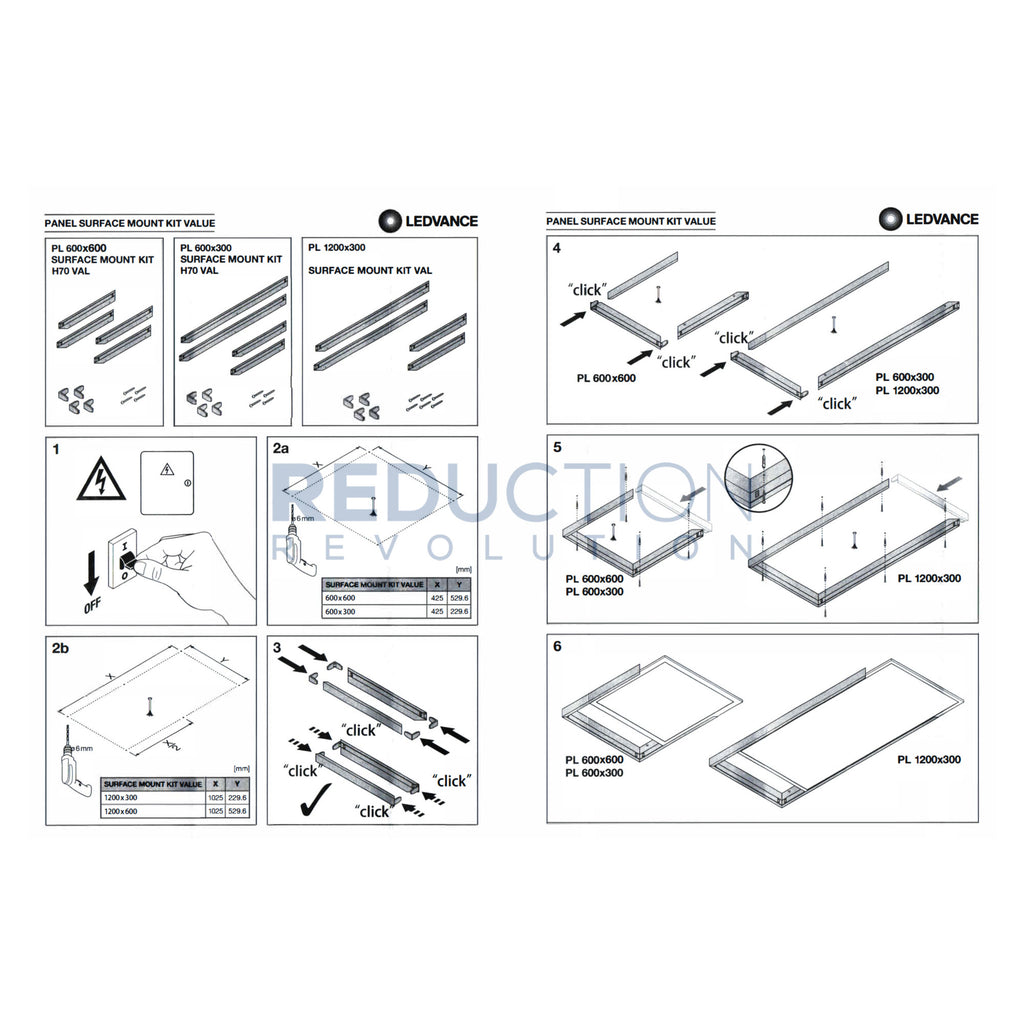

| Further Details | Brochure (PDF), Installation Instructions (PDF) |
