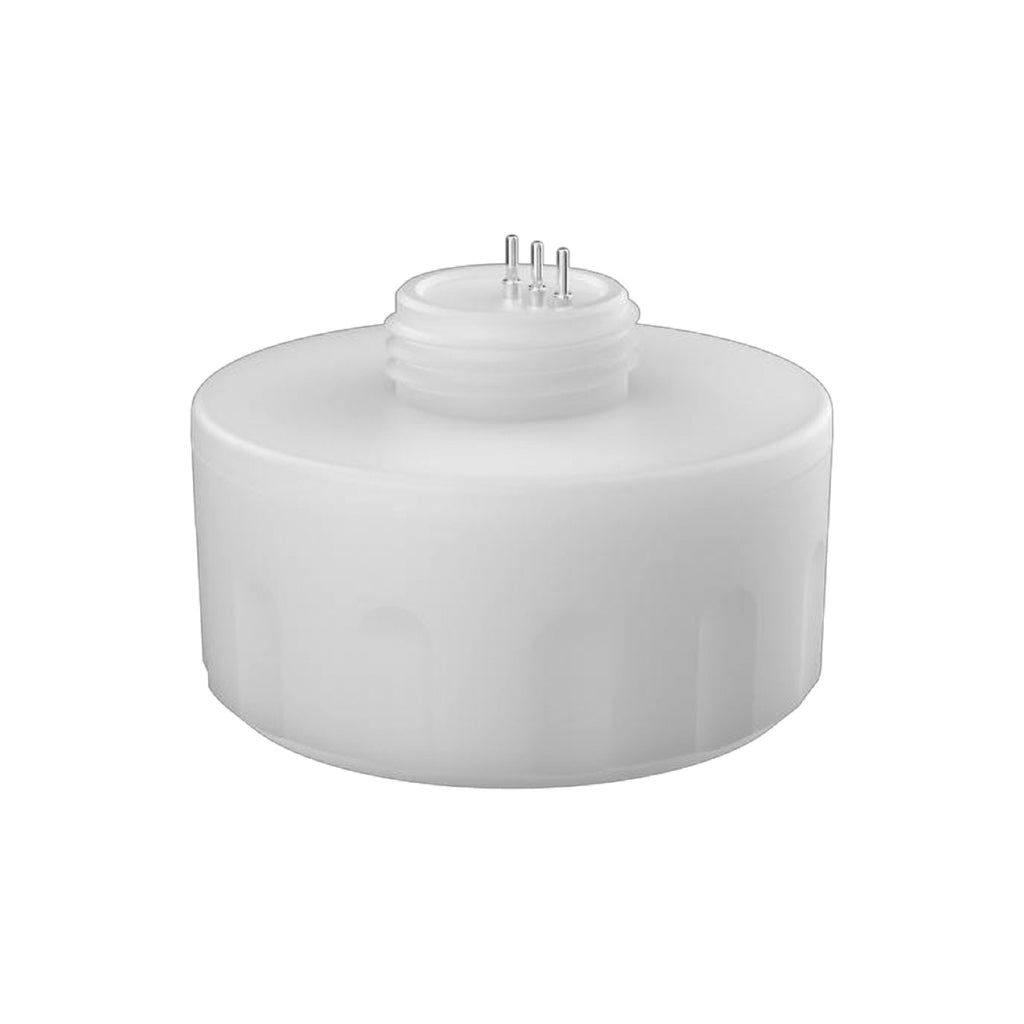

Microwave & Daylight Sensor Add-on for LED High Bay
This motion sensor is compatible with our Ledvance LED High Bay Light.
Adding this motion sensor maximises your energy savings during operation by detecting and adjusting for occupancy and brightness.
By default, the sensor will reduce the brightness to 20% after one minute of no activity in the area. After a further minute, the light will turn off. These two settings are called the 'hold time' and 'standby time' respectively.
If you would like to modify the default settings, manually dim the lights, or enable daylight harvesting, you will also need to add a remote control.
The sensor plugs into the front of the high bay.
Specifications - Sensor for LED High Bay Light
| Power Usage | Less than 0.5W |
| Voltage | 12V DC, supplied by the high bay |
| Sensor Type | Microwave |
| Detection Angle | 360° |
| Detection Range | 15m |
| Available Settings Once Installed | Brightness / Dimming Level; Motion Sensitivity; Hold Time; Standby Time; Standby Dimming Level; Daylight Sensor Level |
| Protection | IP65 outdoor rated |
| Dimensions | 38mm (depth) x 56mm (diameter) |
| Installation | User-installable to the front of the LED high bay. Switch off the power before fitting. |
| Product Identifiers | Ledvance Tri-Colour Multi-Wattage LED High Bay SENSOR |
| Further Details | Sensor & Remote Details (PDF), Install Guide (PDF) |
| Warranty | 5 Years |
Frequently Asked Questions
What other accessories are available for this high bay?
- Remote Control - add this for maximum control and customisation. The remote control requires the above sensor installed on each light to operate.
- Bracket Mount - use this if the included mounting hook is unsuitable for your site.
