Quality LED Downlight for 90mm Ceiling Cut Outs
This Philips 90mm LED Downlight 7.5W is a perfect solution for replacing existing or installing new dimmable LED downlights. It has the following key features:
Energy Efficient - It consumes just 7.5W of power but puts out more light than an old fashioned halogen downlight that uses 50W.
Dimmable LED Downlight - Works well on existing or new LED dimmers.
Robust & Versatile - This 90mm led downlight carries an IP54, IC-4 and IK03 rating. This means it is splash-proof, can be covered with ceiling insulation, and is impact resistant.
Selectable Colour Temperature - A tri-colour switch on the back of the downlight allows you to choose your preferred colour temperature (see graphic below).
Easy Installation - Comes pre-wired with a power lead and 2-pin power plug.
The Philips 90mm LED downlight includes three colour temperature options built-in (3000K warm white, 4000K neutral white, or 6500K daylight).
90mm Downlight Spacing Guide
The graphic below provides an installation guide for new downlight installations. Notice that the light spread at floor level is 5.7m, or about 2.4 times the ceiling height.
To calculate the light spread at floor level for this 90mm downlight, multiply your ceiling height by 2.4.
For adequate lighting levels, some overlap is required (as pictured below). We recommend that these LED downlights be installed between 1.5m and 4m apart.
Close spacing of dimmable downlights is helpful for 'task lighting' such as above kitchen benchtops. Downlights in bedrooms and living areas can be installed further apart.
Example 90mm LED Downlight Beam Angle & Light Spacing.
When replacing existing downlights, it's easiest to stick with the existing lighting layout.
Specifications - Philips Essential SmartBright 90mm LED Downlight
| Power Usage | 7.5W |
| Voltage | 220-240 V AC |
| Lifetime | 30,000 hours |
| Colour Temperature | Switchable between 3000K (warm white), 4000K (neutral / cool white), or 6500K (cool daylight) |
| Beam Angle | 100˚ |
| Light Output | 800lm |
| Colour Rendering Index (CRI) | 87 - measured by Reduction Revolution 80 - Philips' specification |
| Dimmable | Yes. Compatible with most AC dimmers. |
| IC Rating | IC4 rated - okay to 'abut and cover' with insulation |
| IP Rating | IP54 front, IP40 back (suitable for damp areas) |
| Dimensions | 114mm (width) x 56mm (depth) - suitable for 87-100mm cut out holes |
| Weight | 230 grams |

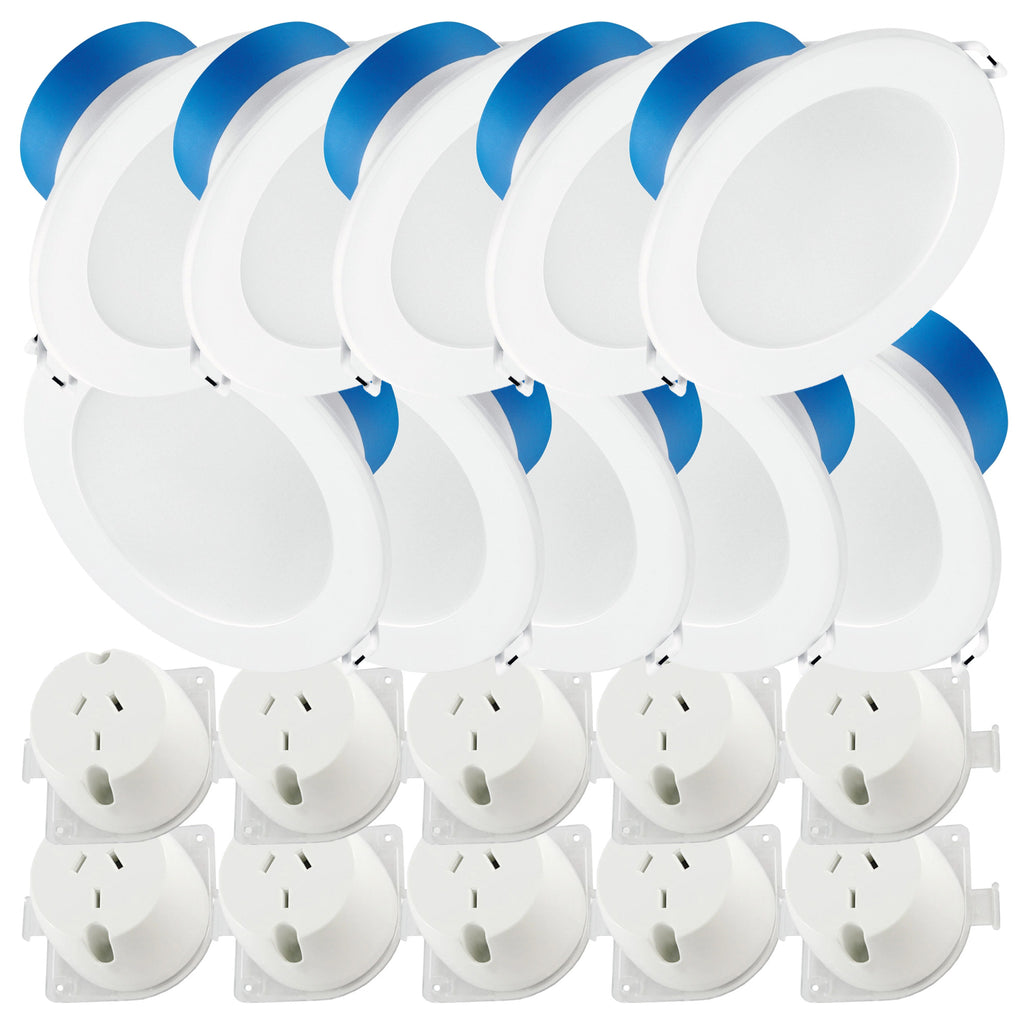

| Installation | Comes pre-wired with 80cm flex and 2-pin power plug. Need power sockets in your ceiling? See our 10 Pack. |
| Product Identifiers | Philips DN029B G2 LED8/CCT PSR-E D90 CAU (manufacturer description); 929002531219 (model number); 8719514251779 (barcode). |
| Further Details | Spec Sheet (PDF); Installation Guide (PDF) |
| Warranty | 3 Years |
Dimensions of the Philips 90mm LED Downlight.
Frequently Asked Questions
Does it need a separate transformer?
No, the transformer is built in. Unlike old downlights - which had a separate globe, fitting and transformer - this new design combines all components into a single product. It plugs straight into a mains power outlet with the included lead and plug.
What dimmers do you recommend for this 90mm downlight?
This Philips LED downlight works with most existing and new dimmer switches. We have tested it on the MEDM (which needs a separate on/off switch) and MMDM (integrated on/off control) LED dimmers, and it works exceptionally well on both dimmers. Even with only one LED downlight attached, these dimmers can dim the downlight right down.
Do I have to use a dimmer?
No - the Philips 90mm LED downlight works fine on a regular light switch.
What other LED downlight options do you sell?
We sell various other options, including LED downlight bulbs (MR16, GU10, etc). Click here to view our full range: LED downlights.
