An Expert Thermal Camera For Trades & Troubleshooting

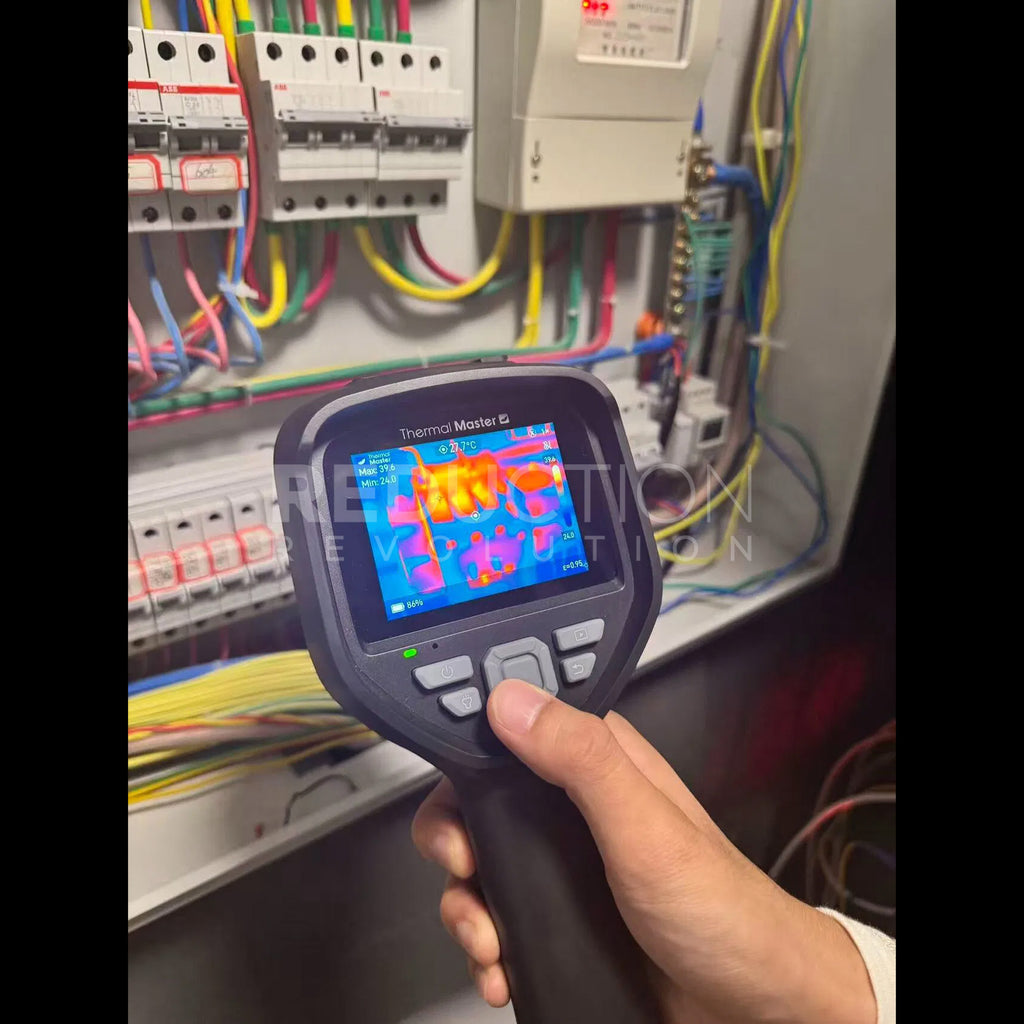

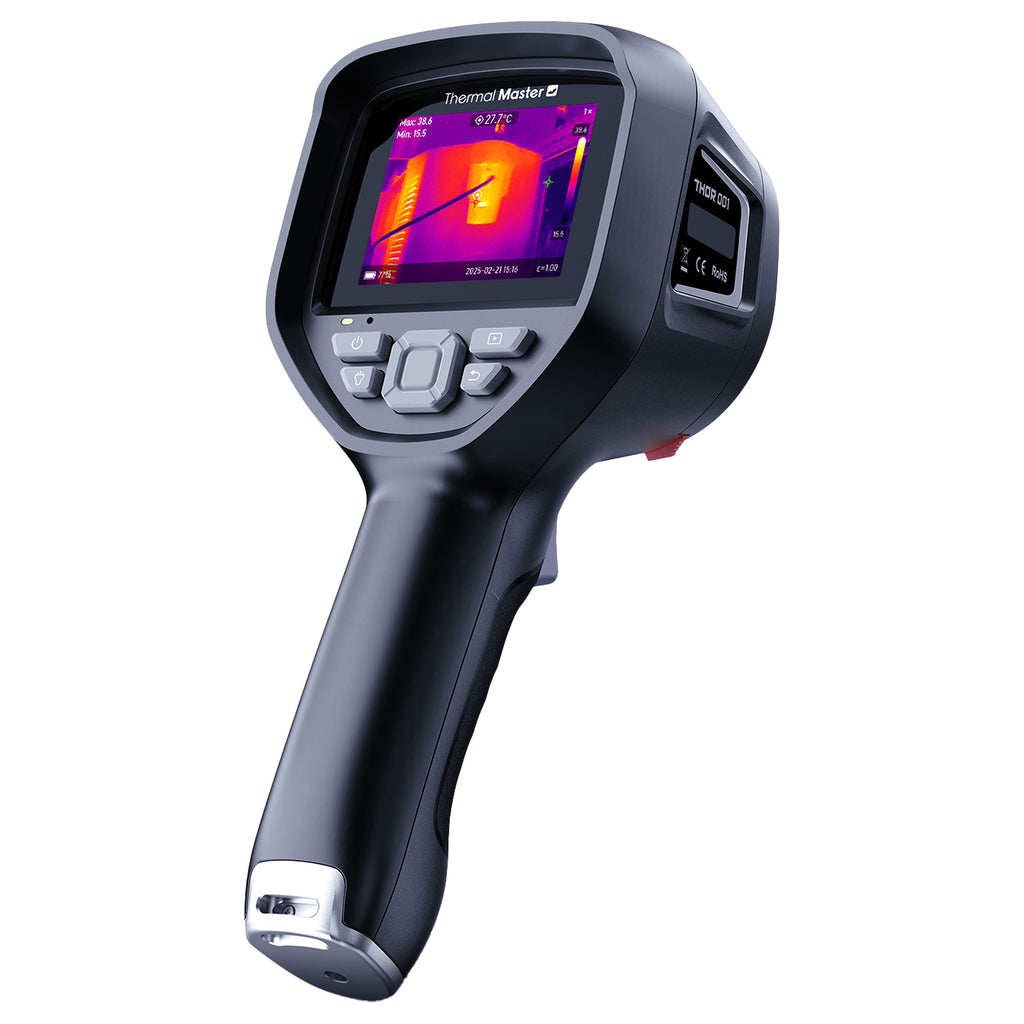

The Thor 001 is Thermal Master's flagship (highest-spec) handheld thermal imaging camera. You can use it for electrical troubleshooting, building diagnostics, HVAC, plumbing investigations, electronics inspection, and more.
- Accurate & Sensitive - 256x192 infrared sensor with Super IR software enhancement up to 512x384, wide -20°C to 550°C temperature range, and high thermal sensitivity.
- Detachable Macro Lens - Inspect circuit board components and small electrical connections down to 0.25mm from as close as 8cm.
- Vivid Display - High-resolution 3.5-inch display (640x480) for image capture and review.

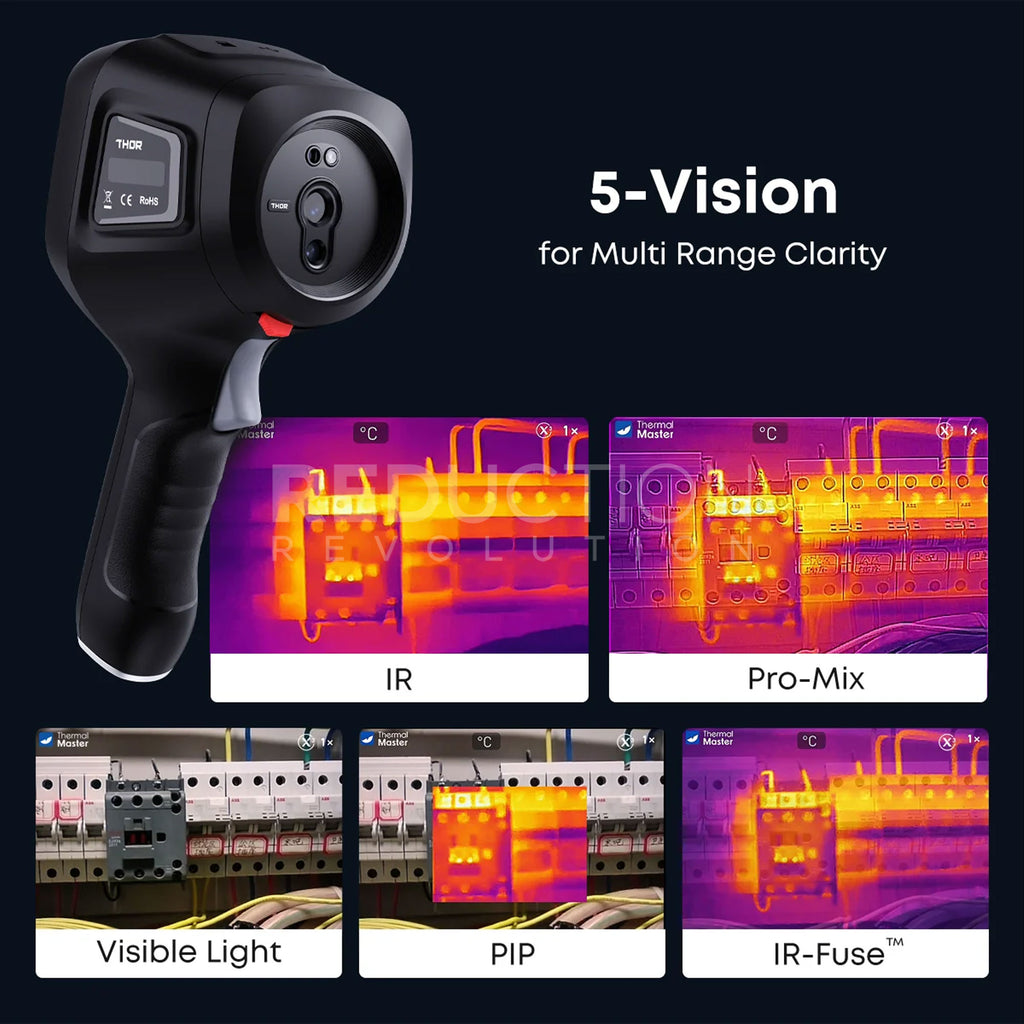

- Multiple Image Modes - Seamlessly switch between IR Thermal, Visual-Only, Picture-in-Picture (PIP), Pro-Mix and IR-Fuse™ fusion mode blending thermal and visual cameras.
- Wireless & Smart Reporting - Connect via Wi-Fi to mobile apps on iOS and Android, or export data to PC analysis software to create reports.
- Built For Harsh Worksites - IP54 splash/dust protection, 2-metre drop resistance, inbuilt lens cover, and up to 8 hours of battery life with 18W USB-C fast charging.
Using the Thermal Master Thor001 to detect electrical circuit board hotspots with the included macro lens.
Detailed Thermal Images - Powered By Super IR & RazorX
The Thor 001 combines a native 256x192 thermal detector with X³ Super IR upscaling (512x384) and RazorX edge enhancement. IR-Fuse™ technology merges visual details from the 2MP visible light camera directly onto thermal images for context and traceability.
Thermal Master IR-Fuse™ blending, Pro-Mix & Picture-In-Picture (PIP) modes provide clear context while working.
Pro Thermal Imager for Advanced Diagnostics

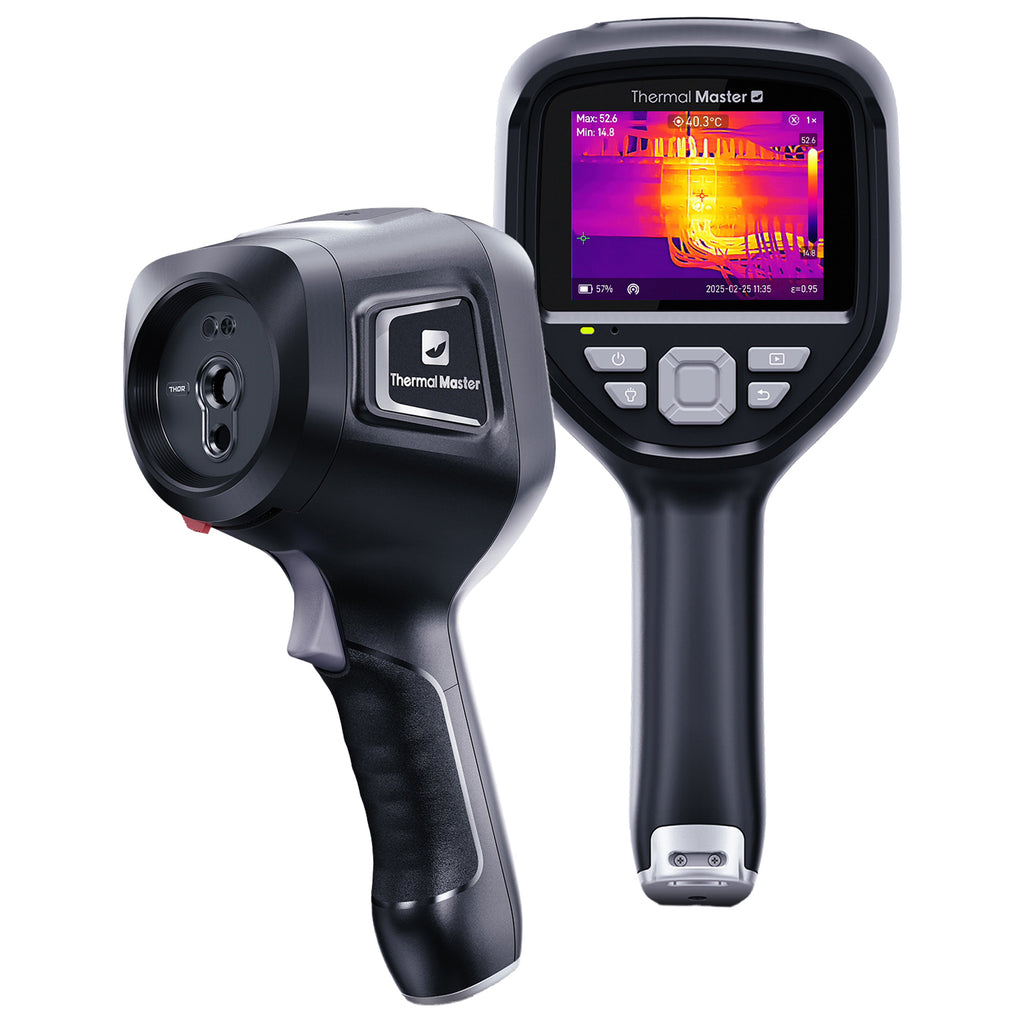

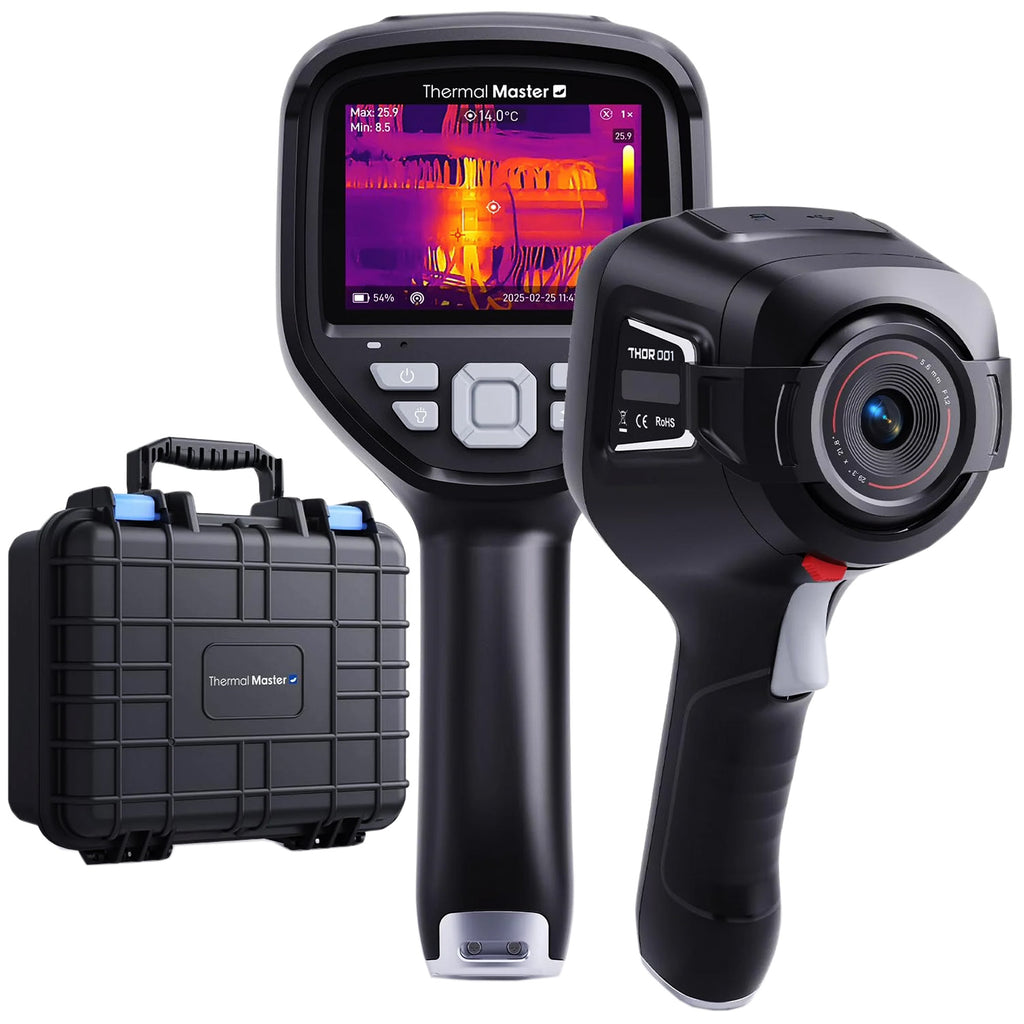

The Thor 001 is Thermal Master's top handheld thermal camera. With a familiar pistol-grip design and rugged housing, it's ready to be put to work.

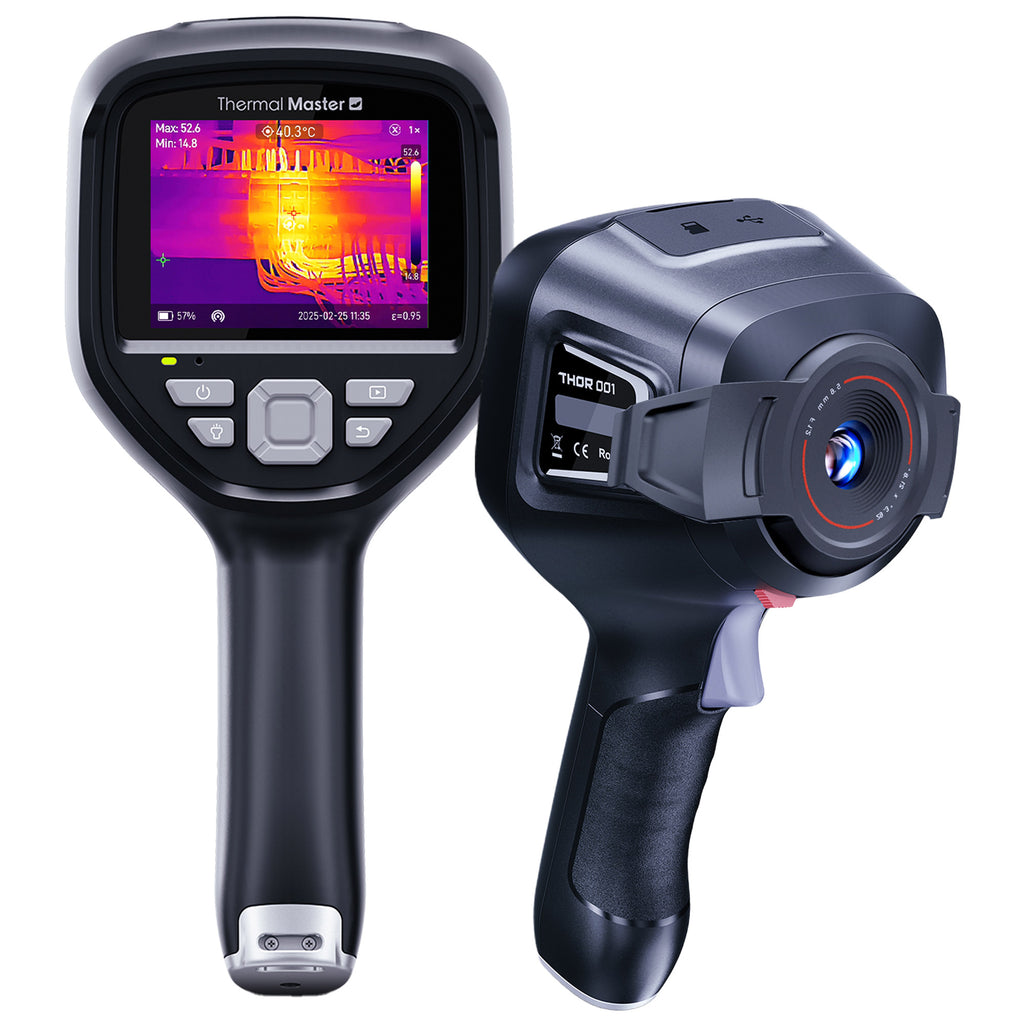

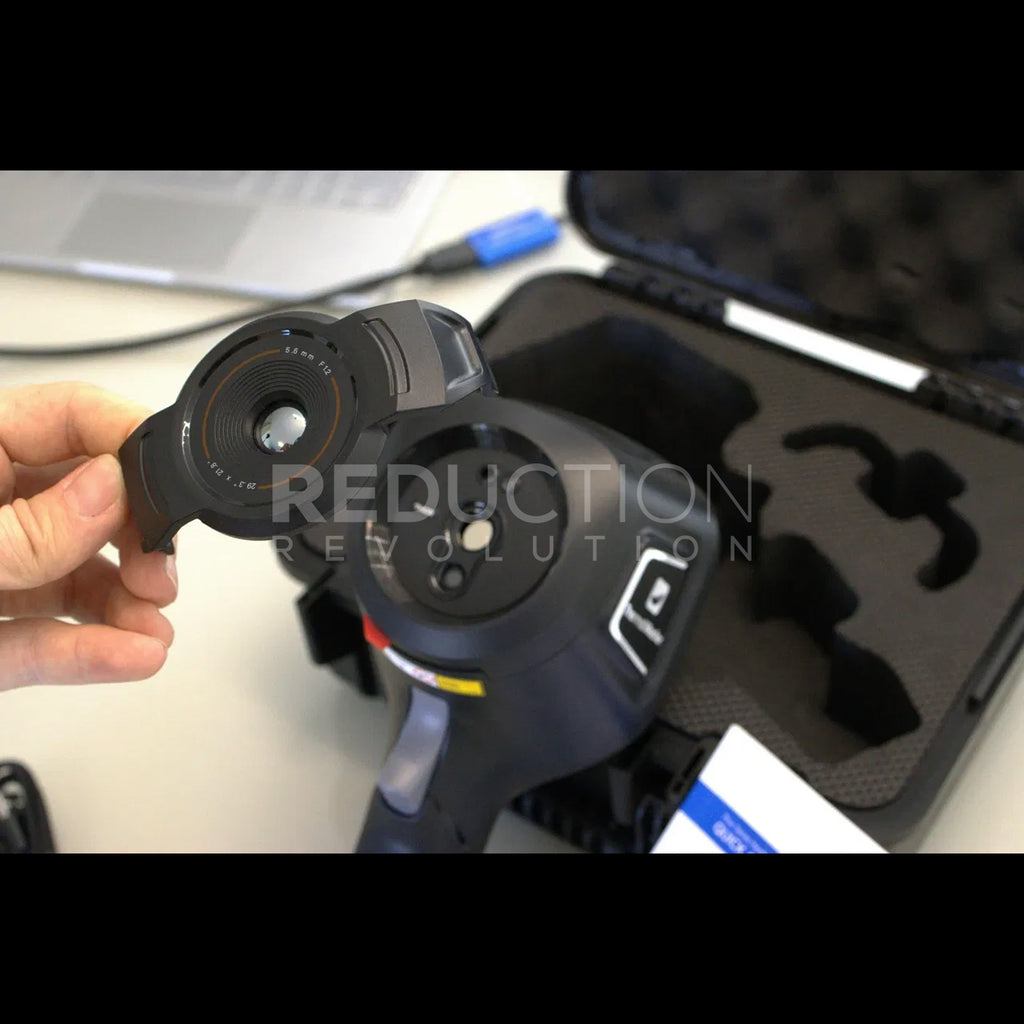

- Detachable Close-Up Macro Lens - Clip on the included macro lens to analyse tiny components on PCBs, micro-electronic assemblies, or intricate mechanical assemblies with pinpoint precision.
- Multi-Point Analysis & Alarms - Track up to 9 temperature spots (centre, min, max, plus 6 customisable spots) simultaneously, with temperature threshold alarms and automatic image capture on alarm.
- Voicetag™ & Audio Annotation - Record voice notes via the built-in noise-reducing microphone to document inspection findings directly into video recordings.
Thermal Master Thor001 Unboxing and Introduction.
Why Buy From Reduction Revolution?
We're experts in thermal imaging, and we've been in business since 2010. We offer:
- Local Stock - we stock and ship the Thor 001 from our warehouse in Sydney.
- Fast Shipping - see our checkout for an Express Post option.
- GST Included - you'll receive a Tax Invoice via email when you order from us, and our prices include GST.
- 2-Year Warranty - we offer a minimum two-year warranty on all products we sell.
Specifications - Thermal Master Thor 001
| Temperature Range | -20°C to 550°C |
| Thermal Resolution | 256 x 192 pixels (software-enhanced to 512 x 384 pixels) |
| Accuracy | ±1.5°C or ±1.5% of reading |
| Thermal Sensitivity | < 35mK NETD (< 0.035°C) |
| Refresh Rate | 25Hz image frequency (60Hz display refresh rate) |
| Field of View (FOV) & IFOV | 40° x 30° FOV; 2.79 mrad IFOV |
| Focus & Macro Lens | Fixed focus (min. focus distance of 30cm, or 8cm with macro lens attached); detachable macro lens included for micro PCB inspection. |
| Zoom | Digital zoom up to 4x |
| Display Screen | 3.5-inch IPS LCD display (640 x 480 pixels) |
| Image Modes | IR (default), IR-Fuse™ (Dual-Light Fusion), Picture-in-Picture (PIP), Pro-Mix, Visual |
| Video Recording | Yes - record in MP4 format or stream |
| Visual Camera | 2 megapixel digital camera |
| Colour Palettes | 9 palettes: White Hot, Black Hot, Lava, Iron, Rainbow, Rainbow HC, Black Red, High Temp Highlight, Low Temp Highlight |
| Measurement Tools | 9-point spot metering (Centre, Max, Min, 6 Custom), temperature difference, isotherm, Max/Min temperature alarm (pop-up & flashlight prompt) |
| Extra Features | Built-in Microphone, Laser pointer, and LED flashlight |
| Connectivity & Storage | USB Type-C 2.0 and Wi-Fi wireless connection; 8GB internal memory plus 32GB MicroSD Card |
| Software | Free/included ThermalSmart Mobile App (iOS & Android) and PC Analysis Software |
| Battery | 5000mAh rechargeable lithium battery; up to 8hr operating time; 18W USB-C fast charging (4hr charge time) |
| Durability | IP54 water/dust rating, 2m drop resistance, alloy metal base, built-in lens protector switch. |
| Product Identifiers | Thermal Master Thor 001 (THOR001); Barcode: 6977658980326 |
| Further Details | Datasheet (PDF), User Manual (PDF) |
| Warranty | 2 Years |
Frequently Asked Questions

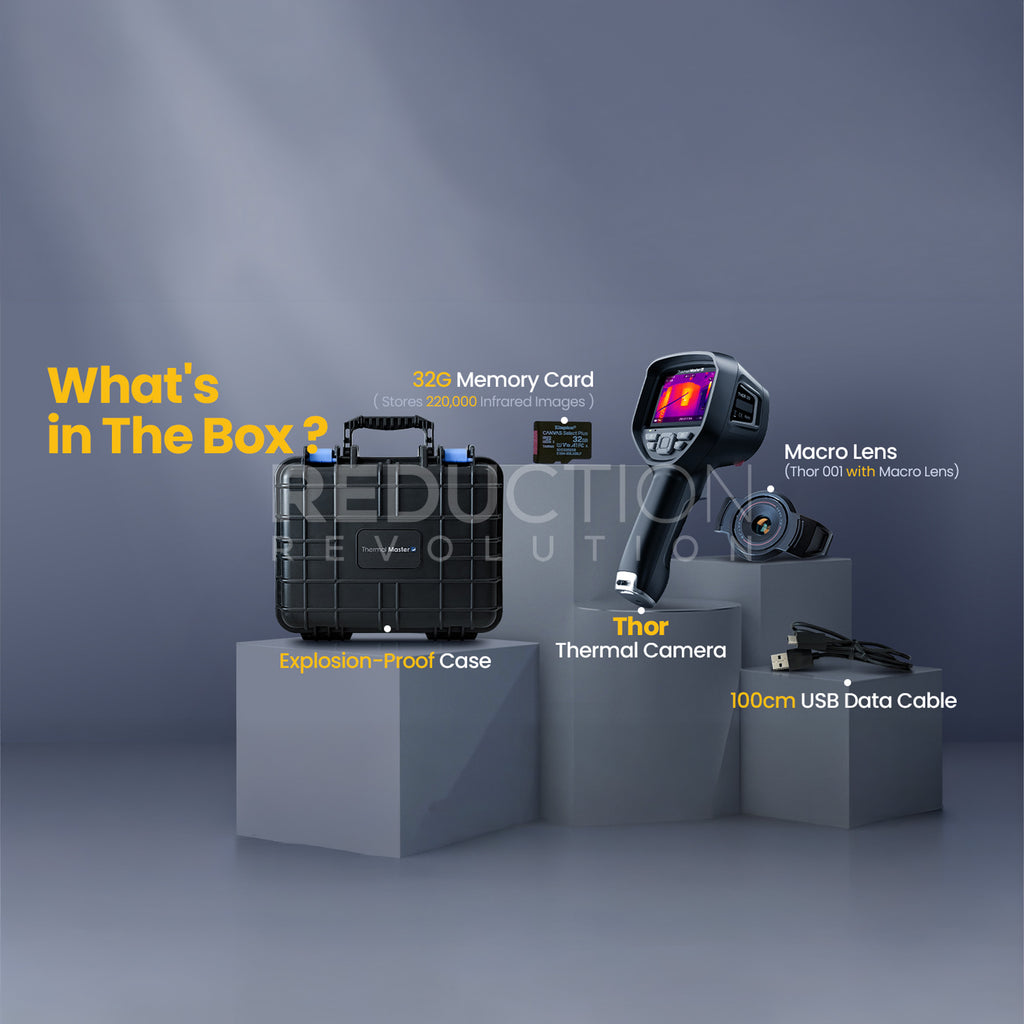

What's included with the Thermal Master Thor 001 kit?
The Thermal Master Thor 001 kit contains everything required for comprehensive field inspections. The package includes:
- Thermal Master Thor 001 Handheld Thermal Camera.
- Detachable Super Macro Lens attachment.

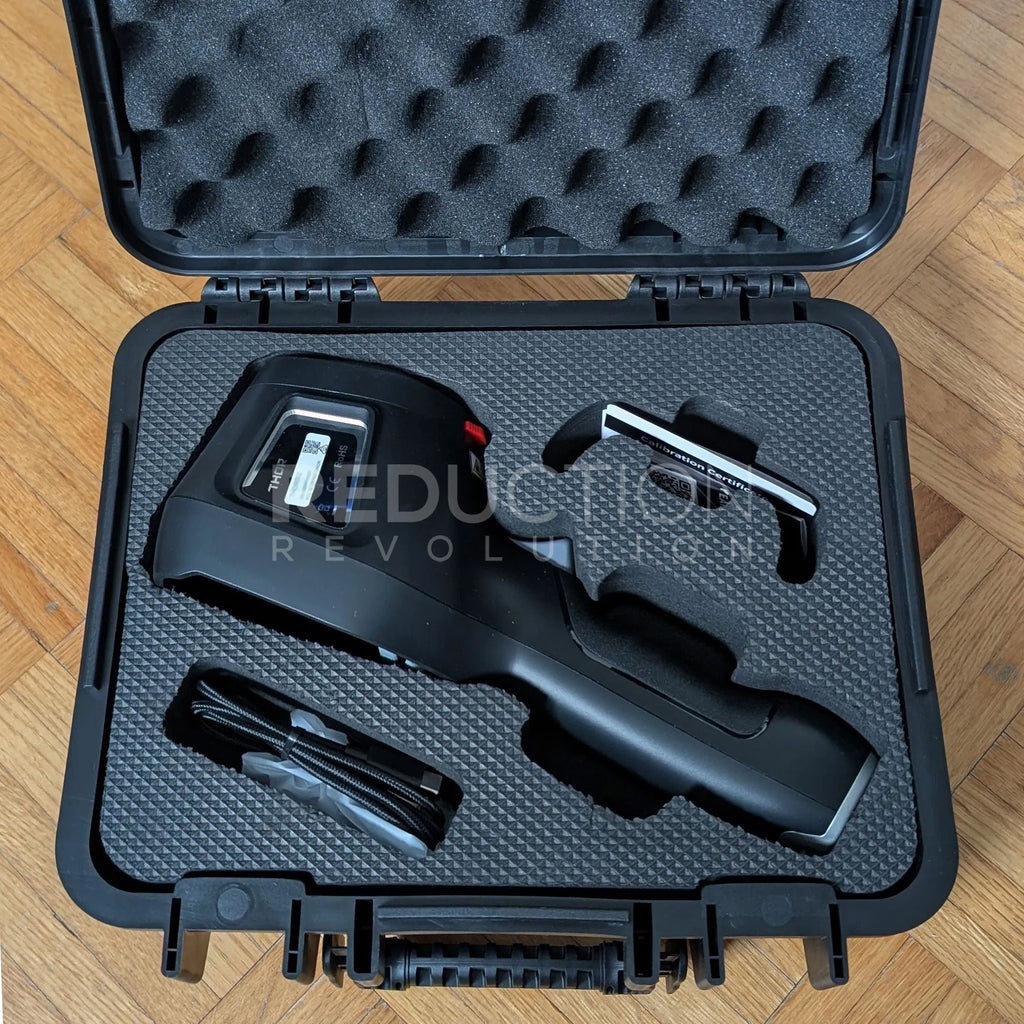

- Sturdy hard carry case.
- 32GB MicroSD storage card & USB Type-C cable.
- Warranty card, calibration certificate, and quick start guide.
Do I need special software to download and view the images?
No - you can connect the Thor 001 directly to your computer using the included USB-C cable to transfer radiometric images and video recordings like a USB drive. For enhanced reporting and analysis options, you can use:
- The mobile app (iOS and Android) via Wi-Fi for wireless viewing, quick image sharing, and instant field updates.
- PC-based Thermal Analysis Software (included) for in-depth temperature adjustment, emissivity tuning, and generating formal client reports.
What sets the Thor 001 apart from other thermal cameras?
The Thermal Master Thor 001 offers several high-end features typically found only on far more expensive handheld 'pistol-grip' style thermal imagers:
- Included Macro Lens: Allows focus down to 8cm for micro-electronics, PCB repair, and fine component inspection down to 0.25mm.
- Super IR Resolution (512x384): Software enhancement upscales the native 256x192 detector for 4x larger images.
- High Thermal Sensitivity (<35mK): Detects subtle temperature shifts (down to 0.035°C) to spot hidden leaks, moisture, or insulation gaps.
- Voice & Video Recording: Built-in microphone lets you record voice comments directly over video recordings while scanning.
