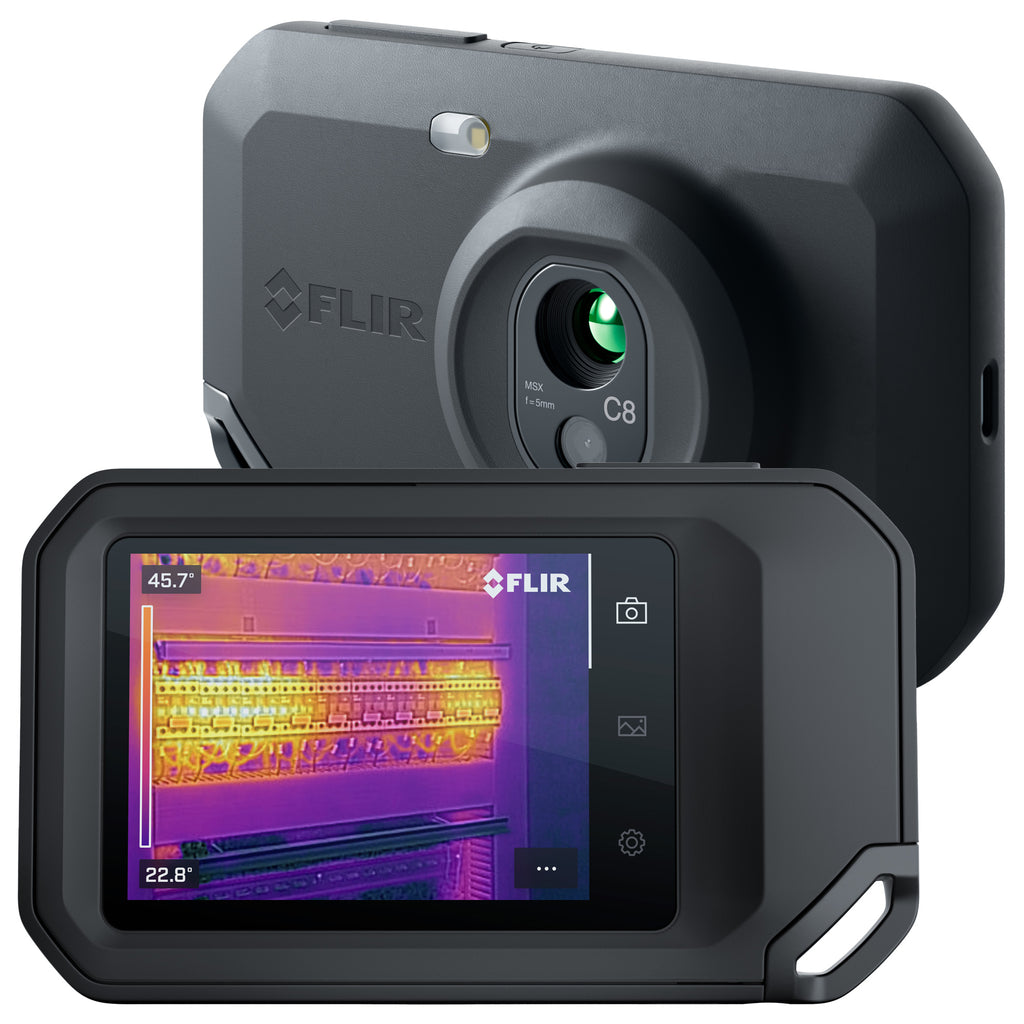

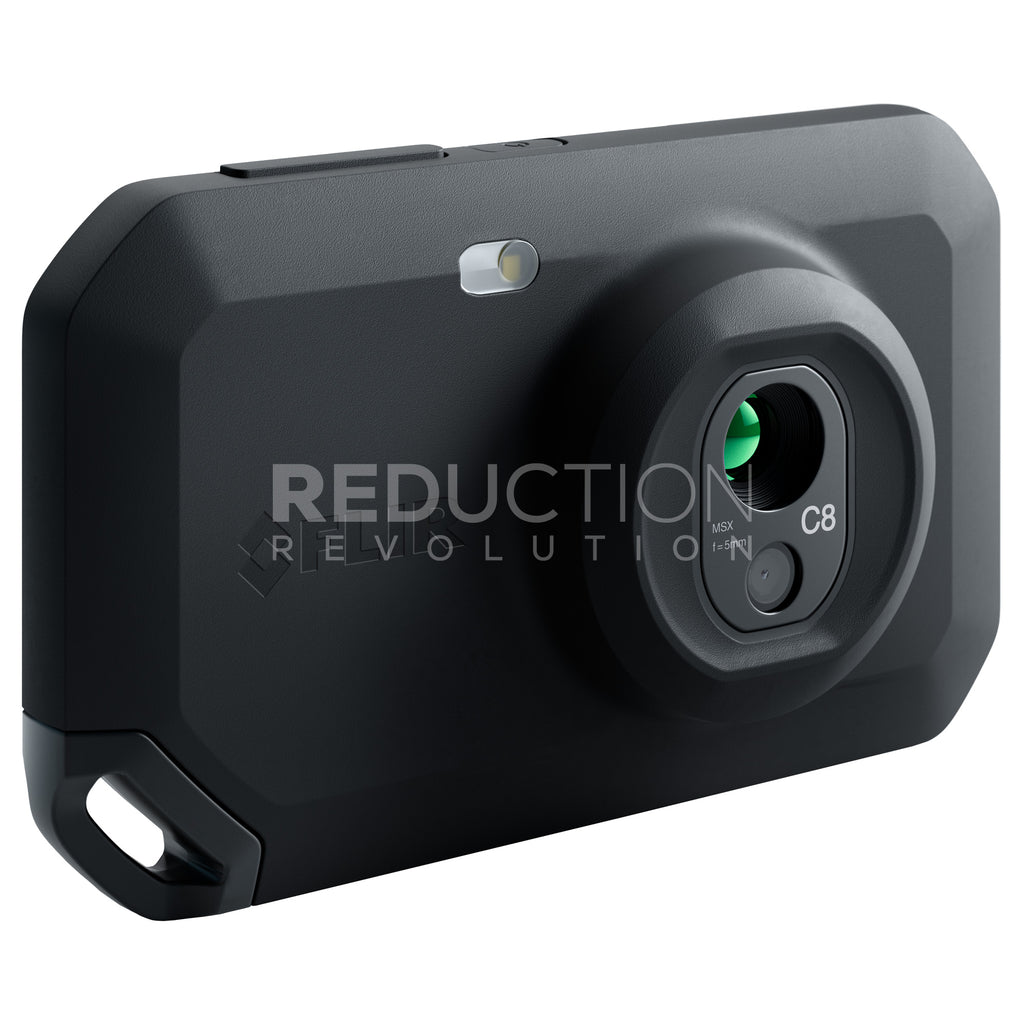

FLIR C8 High-Resolution Thermal Camera
The FLIR C8 is a compact next-generation hand-held infrared imager. It helps deliver high-performance thermal inspections and reports for a wide range of industries.
320×240 True Thermal Resolution. Capture crisp thermal images with superior detail in this price category. The FLIR C8 has four times the thermal resolution of similar products. It allows for more precise fault finding compared to previous models.
Patented MSX Image Enhancement. Instantly pinpoint problems with visible-light details embedded onto thermal images.

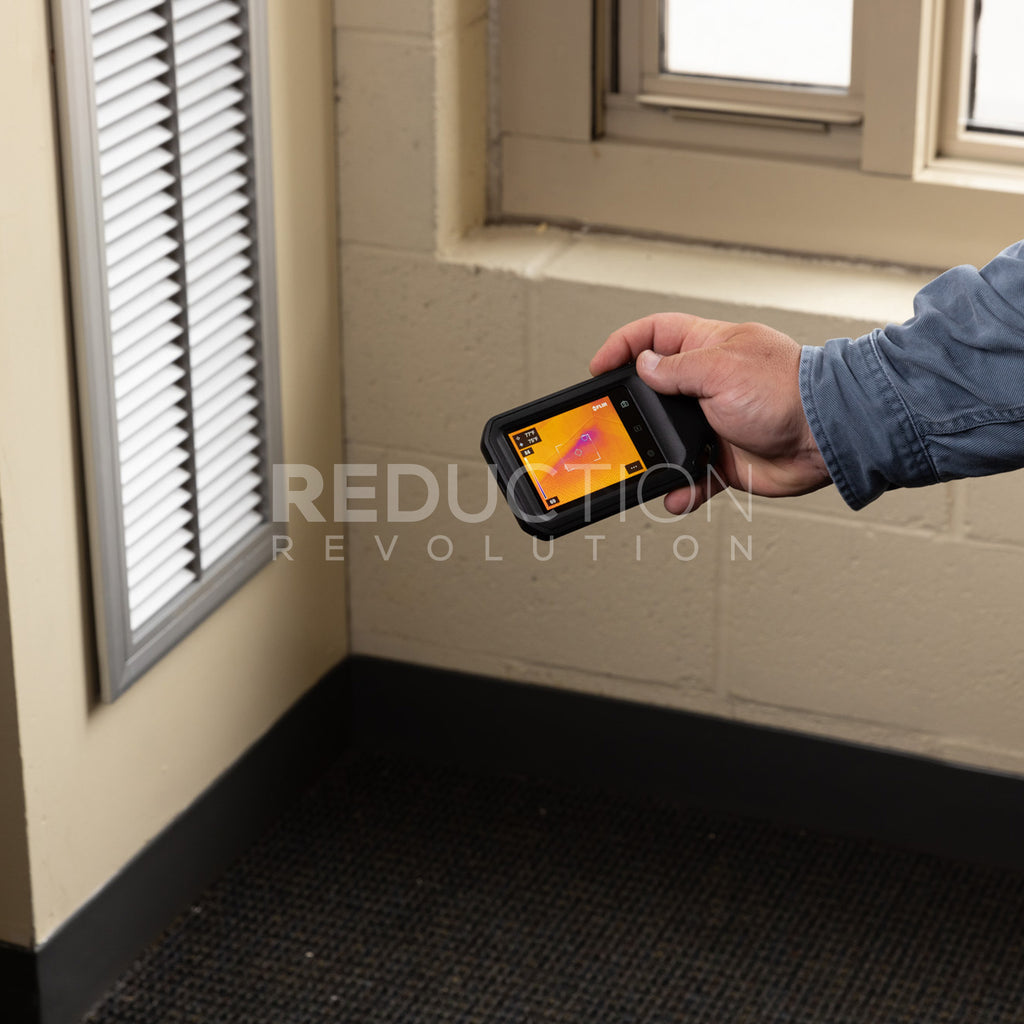

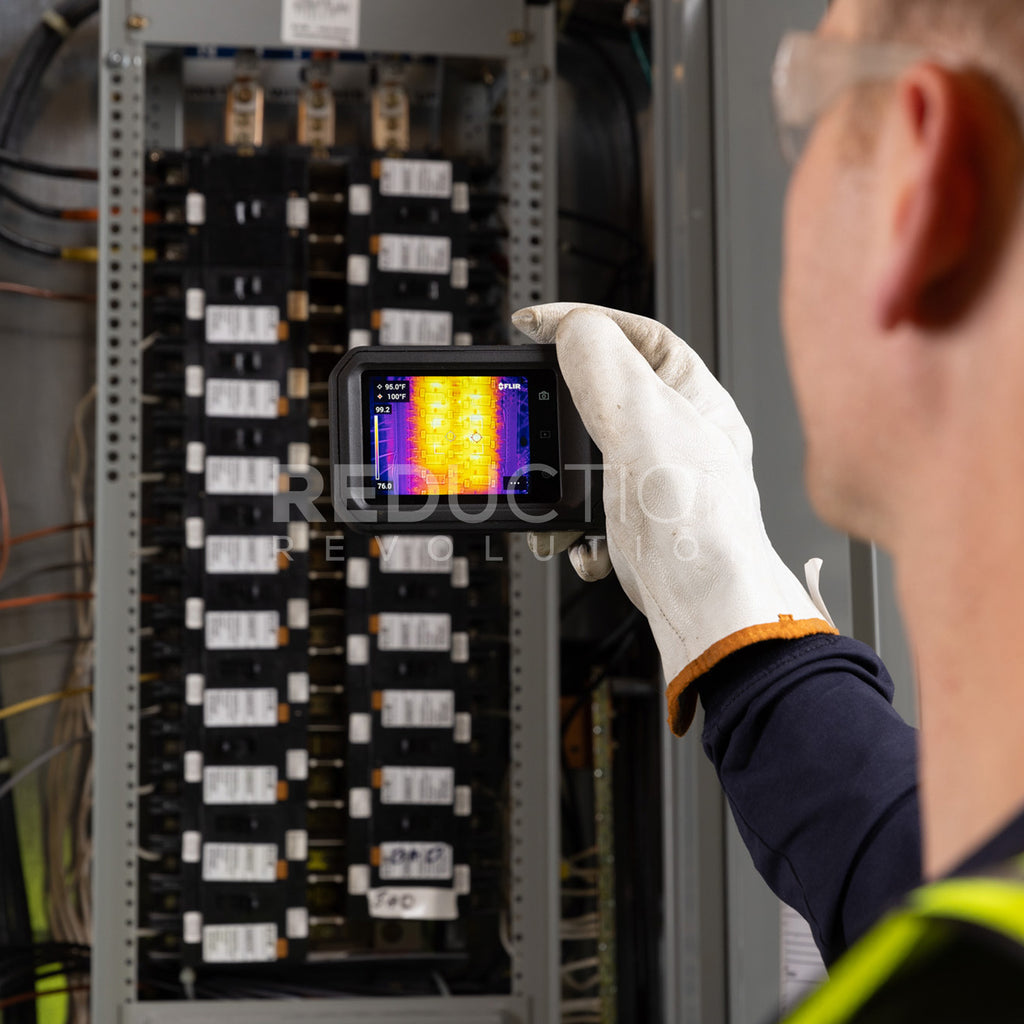

35° Field of View. You can efficiently assess either large areas or close-range targets, ideal for building inspections and electrical switchboards.
Large Temperature Range. Measure temperatures from –20°C to 450°C with accuracy. Get dependable results across many applications, including restoration work, pest control, and more.
Isotherm Alarm & Custom Palettes. Instantly identify areas exceeding set temperature thresholds, crucial for electrical and mechanical diagnostics. Choose from multiple colour palettes, including Iron, Rainbow, Arctic, Lava, Black/White Hot, and more.
A short video outlining the FLIR C8's key features.
FLIR C8 Enhanced Workflow
FLIR Ignite Cloud Integration. Automatically sync inspection images via Wi‑Fi and generate reports using purpose-built templates.

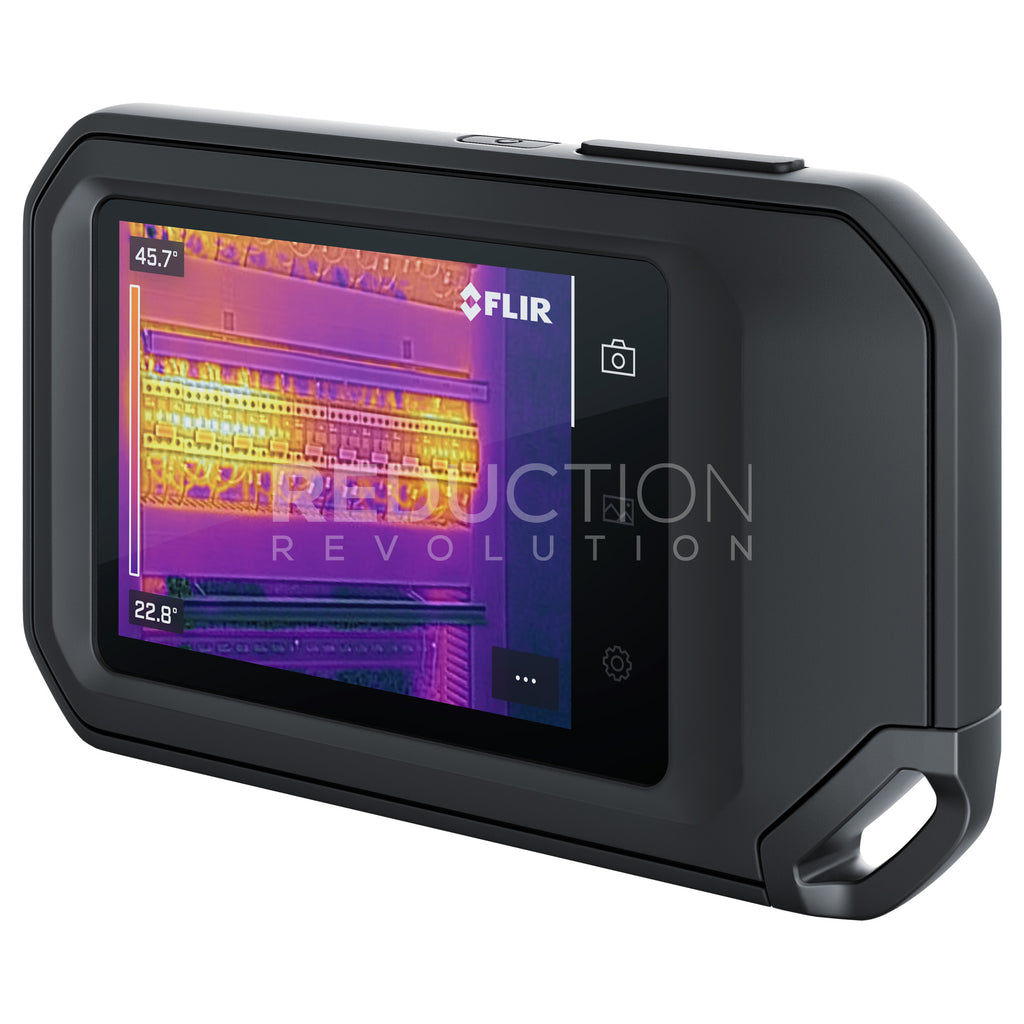

Touchscreen & User-Friendly Interface. A bright, 3.5-inch touch display provides intuitive menu navigation, rapid annotation, and quick access to image review and sharing tools.
Streaming Capabilities. Stream visual, MSX, or thermal video over USB directly to a computer for real-time diagnostics or presentations. The FLIR C8 even includes a tripod mount for basic fixed-position monitoring.
IP54 Rated & 2m Drop Test. The FLIR C8's durable industrial design is dust- and splash-resistant, built to withstand harsh site conditions.
Compact, Portable Form Factor. Pocket-sized and weighing just 207g, it's easy to carry all day. It features 3 hours of battery life and a built-in LED flashlight for use in dark environments.
The FLIR C8 is compact, easy to use, and delivers industry-leading high-resolution thermal images.
FLIR C8 - Specifications
Temperature Range | -20°C to 450°C |
Thermal Resolution | 320 x 240 (76,800 measurement pixels) |
Thermal Sensitivity | < 0.05°C |
Wi-Fi | Yes (2.4 and 5 GHz) |
Field of View | 35° × 27° |
Min Focal Distance | 0.4m |
Display | 3.5-inch colour touch screen |
Measurement Modes | Spot meter, Area min or max, and Isotherm |
Image modes | Infrared image, Visual image, MSX (visual-thermal blend), Picture-in-picture (IR area on visual image) |
Emissivity Correction | Yes - preselect or custom value |
Colour Palettes | Iron, Rainbow, Rainbow High Contrast, White Hot, Black Hot, Arctic, Lava, Above Alarm, Below Alarm |
Image Storage | Internal (greater than 5,000 images) |
Image Type | Standard JPEG image with embedded temperature data 'radiometric image' |

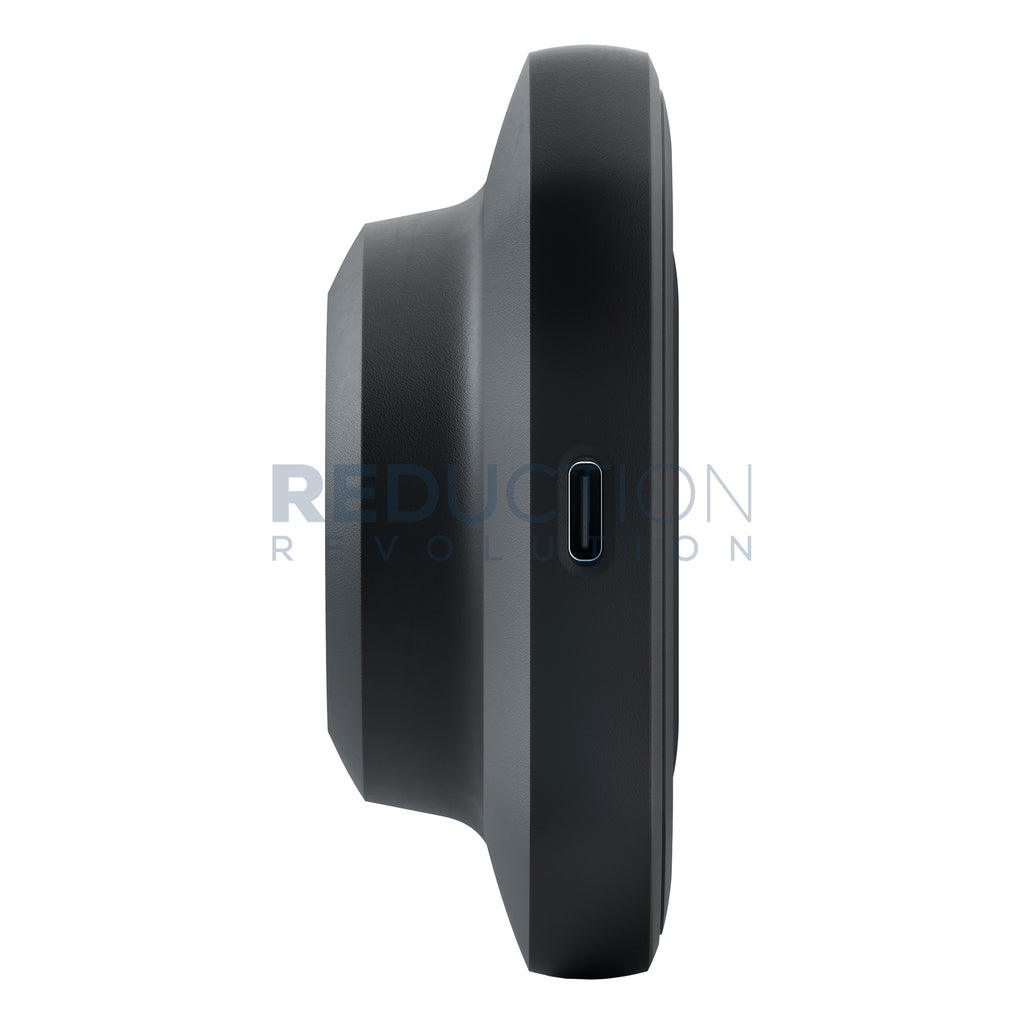

Connector Type | USB-C connector, cable included |
Battery | Internal rechargeable lithium battery with 3 hour operating time |
Weight | 207 grams |
Dimensions | 138mm x 84mm x 34mm |
Further Info | Datasheet (PDF), User Manual (PDF), Part Number: 18801-0101 |
Warranty | 2 Year Product, 10 Year Detector |
What's included in the box?
The FLIR C8 kit includes everything you need:
- FLIR C8 Compact Thermal Camera
- Wrist Strap Lanyard
- Carry Pouch
- USB Type-C Cable (for charging and data download)
- Printed Quick Start Documentation
How does the FLIR C8 differ from the FLIR C5?
Compared to the lower-cost FLIR C5, the FLIR C8 offers significantly higher resolution, better thermal sensitivity, a narrower field of view, and additional measurement modes.
What is the FLIR Ignite cloud platform?
FLIR Ignite is an optional cloud-based image backup service. It's free up to 1GB of storage, which is a lot of thermal images.
Alternatively, you can plug the FLIR C8 into your computer using the supplied USB cable. Then, you can view and download the images using your file system, just as you would with a digital camera. If you use a Mac, you will need to download this app to use this method.
